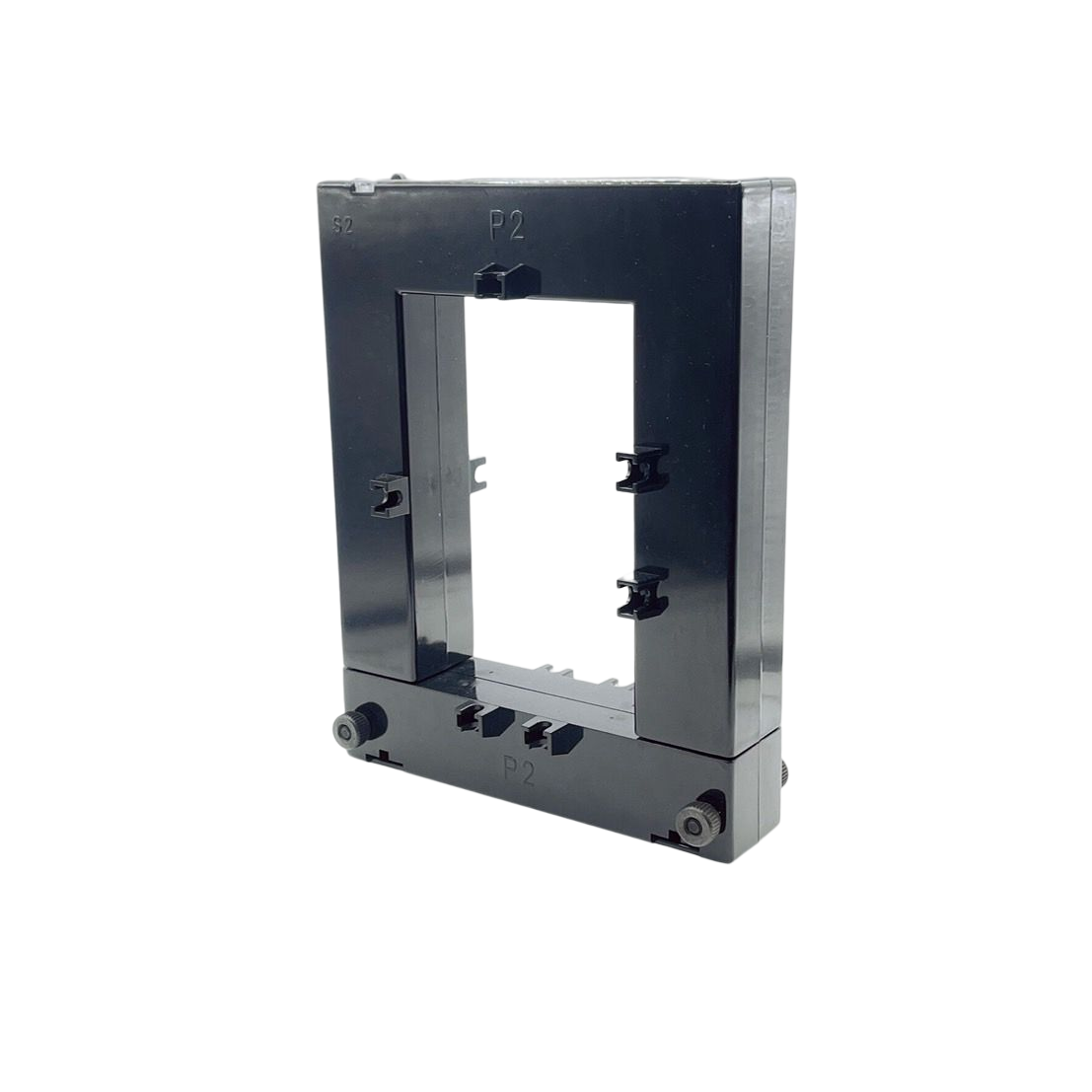

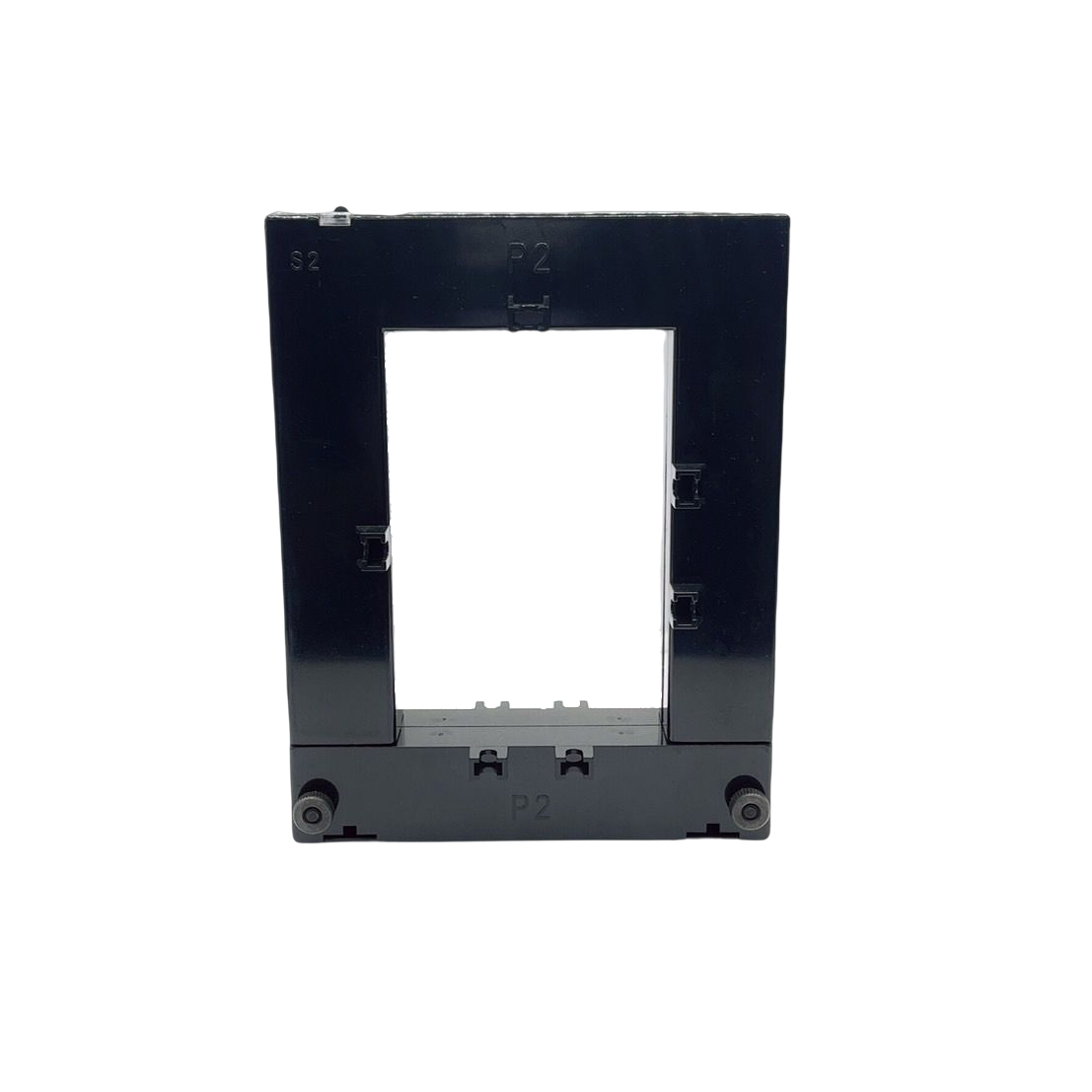

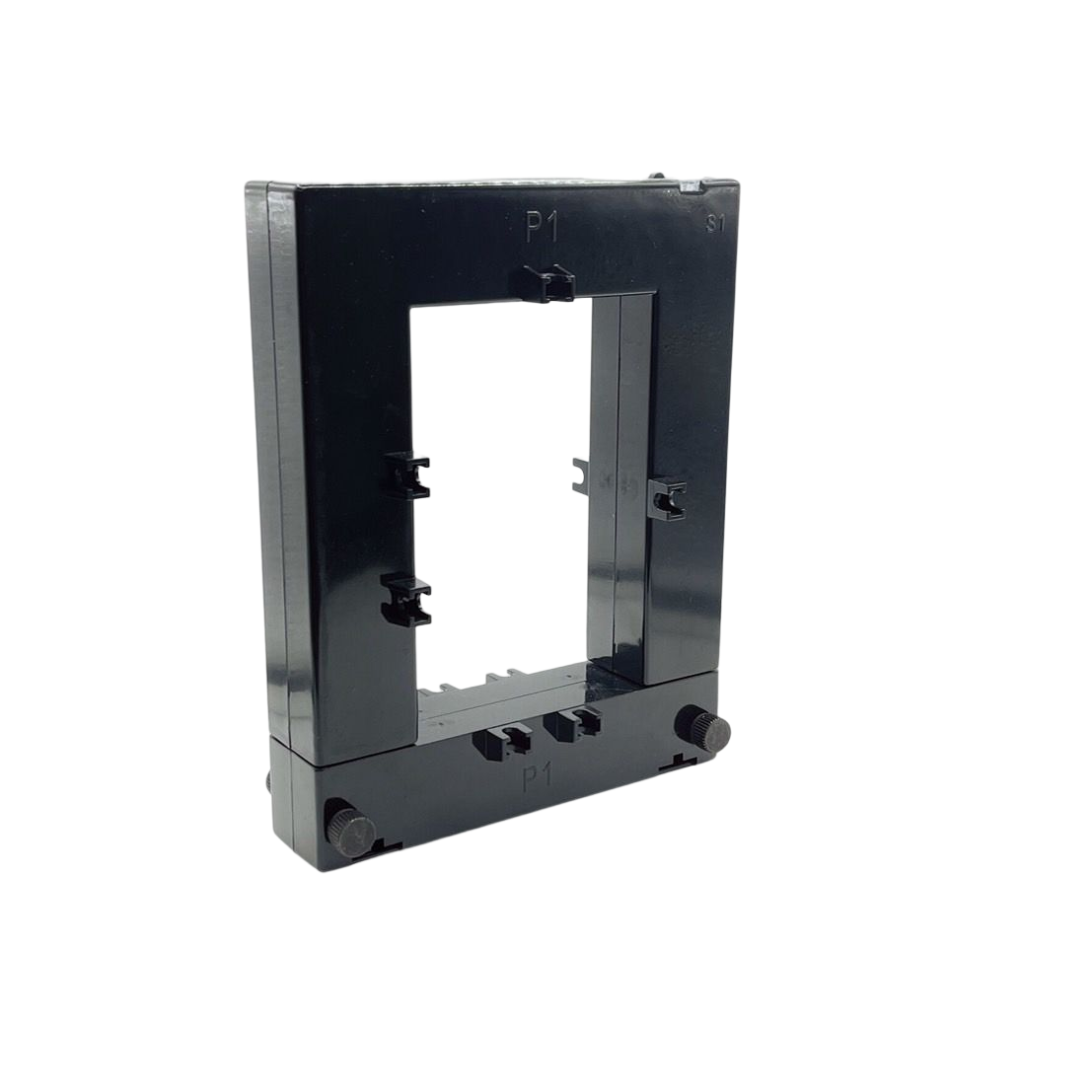

SCT Series
- Specification
- Primary current from 100A to 5000A
- Secondary current: 5A/1A
- Frequency : Linear 50/65 Hz
- Rated system voltage: 0.72 / 3kv
- Short time thermal current: 60In
- Dynamic current: 2.5/th
- Continous overload: 1.2/n
- Ambient temperature: -10℃ to 50℃
- Class: 0.5 1.0
- Custom specifications are available
Description
| Item Code | Ratio(A) | Class0.5 (VA) | Class1.0 (VA) |
|---|---|---|---|
| SCT-23 |
100
|
- | - |
| SCT-23 | 250 | - | 2 |
| SCT-23 | 300 | 1.5 | 4 |
| SCT-23 | 400 | 1.5 | 6 |
| SCT-58 | 250 | 1.5 | 2 |
| SCT-58 | 300 | 1.5 | 3 |
| SCT-58 | 400 | 2.5 | 3 |
| SCT-58 | 500 | 2.5 | 5 |
| SCT-58 | 600 | 2.5 | 5 |
| SCT-58 | 750 | 2.5 | 6 |
| SCT-58 | 800 | 2.5 | 7 |
| SCT-58 | 1000 | 5 | 10 |
| SCT-88 | 250 | 1.5 | 2 |
| SCT-88 | 300 | 1.5 | 3 |
| SCT-88 | 400 | 1.5 | 3 |
| SCT-88 | 500 | 2.5 | 5 |
| SCT-88 | 600 | 2.5 | 5 |
| SCT-88 | 750 | 2.5 | 6 |
| SCT-88 | 800 | 2.5 | 7 |
| SCT-88 | 1000 | 5 | 10 |
| SCT-812 | 500 | 2.5 | 4 |
| SCT-812 | 600 | 2.5 | 5 |
| SCT-812 | 750 | 2.5 | 6 |
| SCT-812 | 800 | 2.5 | 7 |
| SCT-812 | 1000 | 5 | 9 |
| SCT-812 | 1200 | 6 | 11 |
| SCT-812 | 1250 | 7.5 | 15 |
| SCT-812 | 1500 | 7.5 | 17 |
| SCT-816 | 1000 | 10 | 15 |
| SCT-816 | 1500 | 15 | 20 |
| SCT-816 | 2000 | 15 | 20 |
| SCT-816 | 2500 | 15 | 20 |
| SCT-816 | 3000 | 20 | 25 |
| SCT-816 | 4000 | 20 | 25 |
| SCT-816 | 5000 | 20 | 25 |
