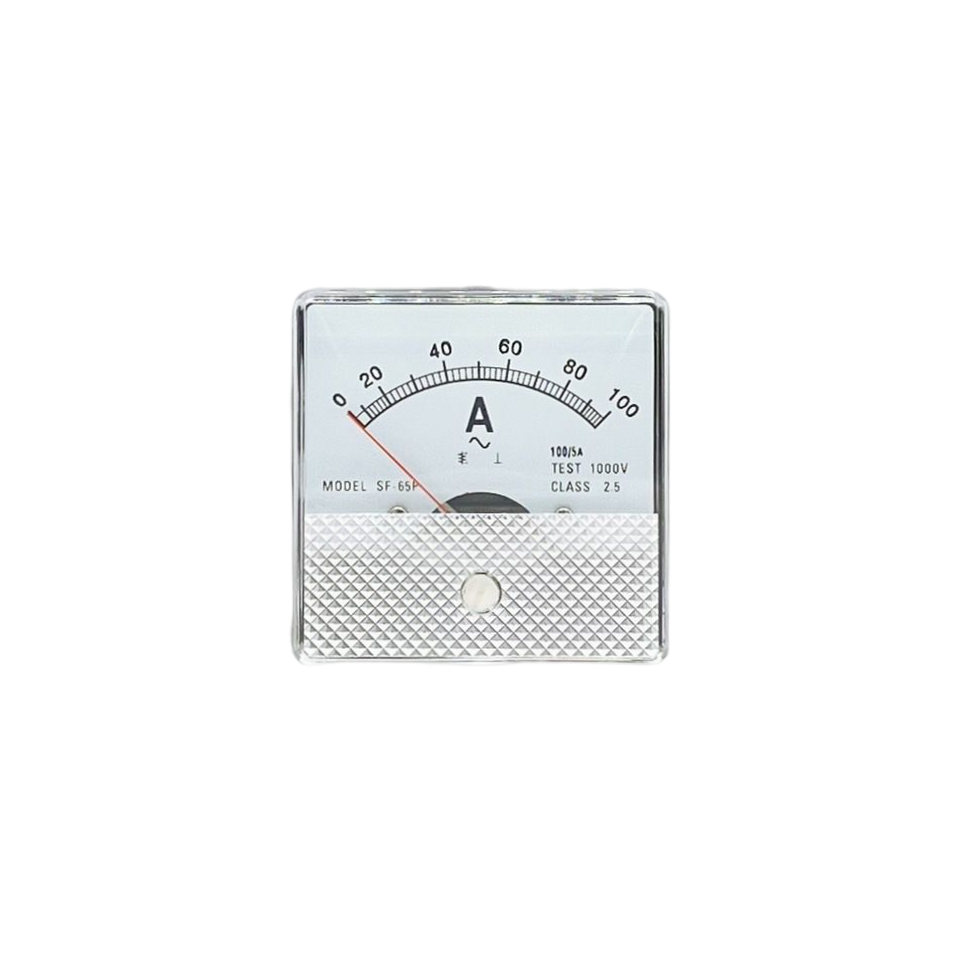

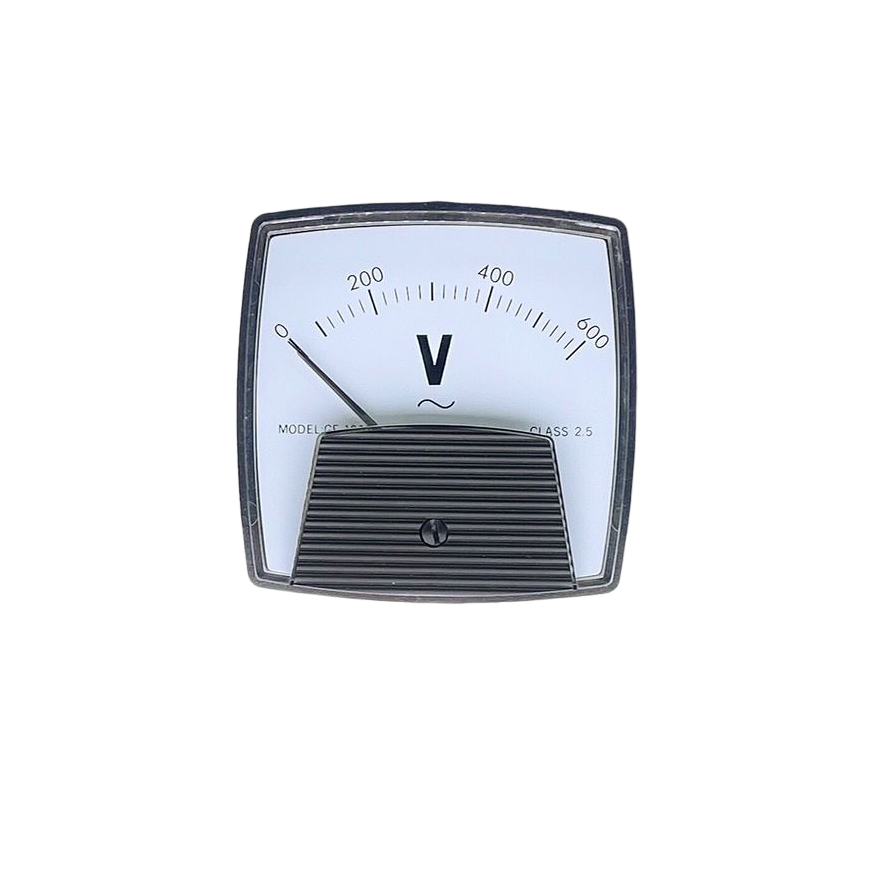

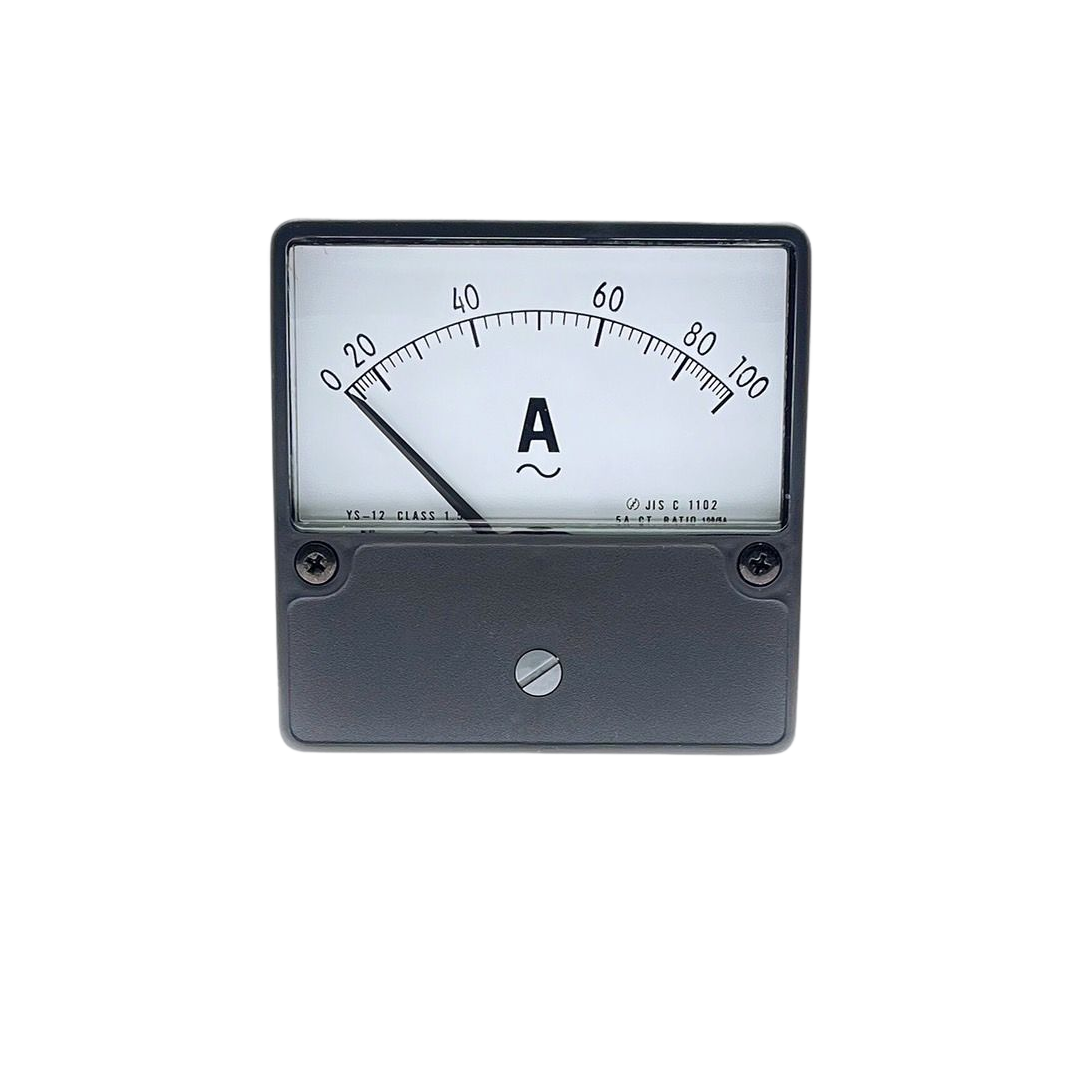

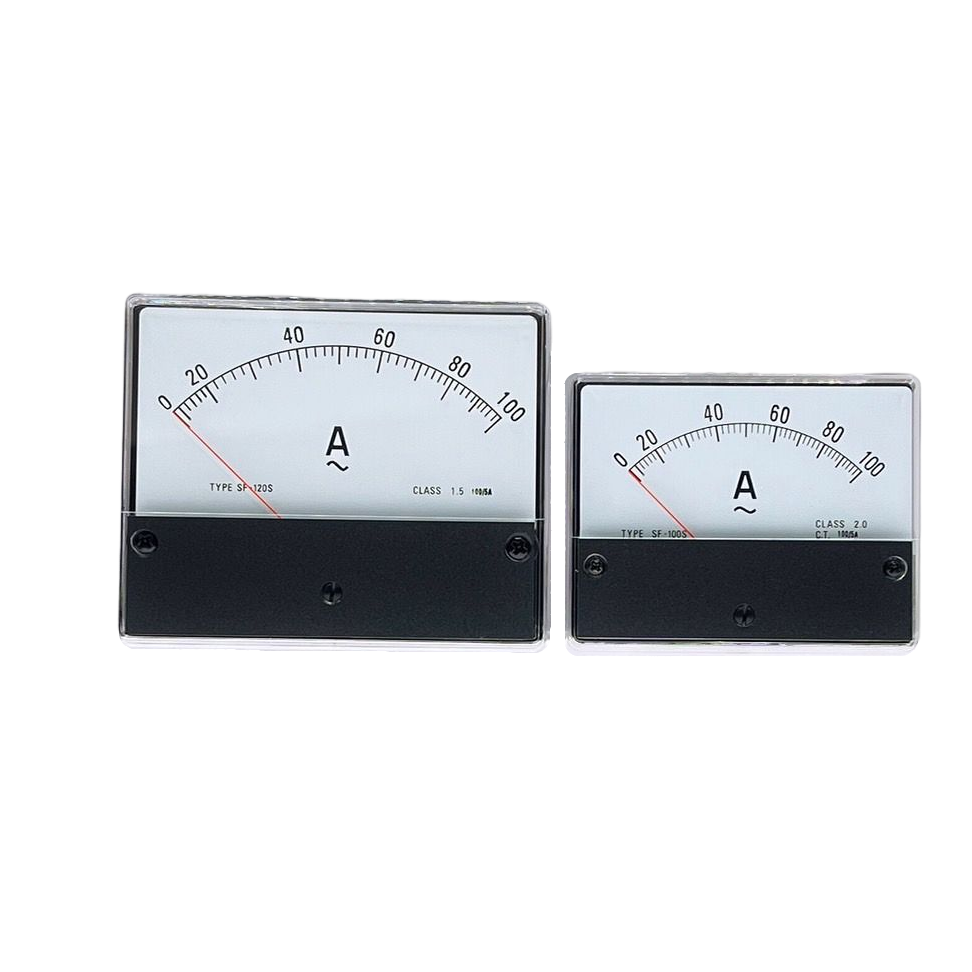

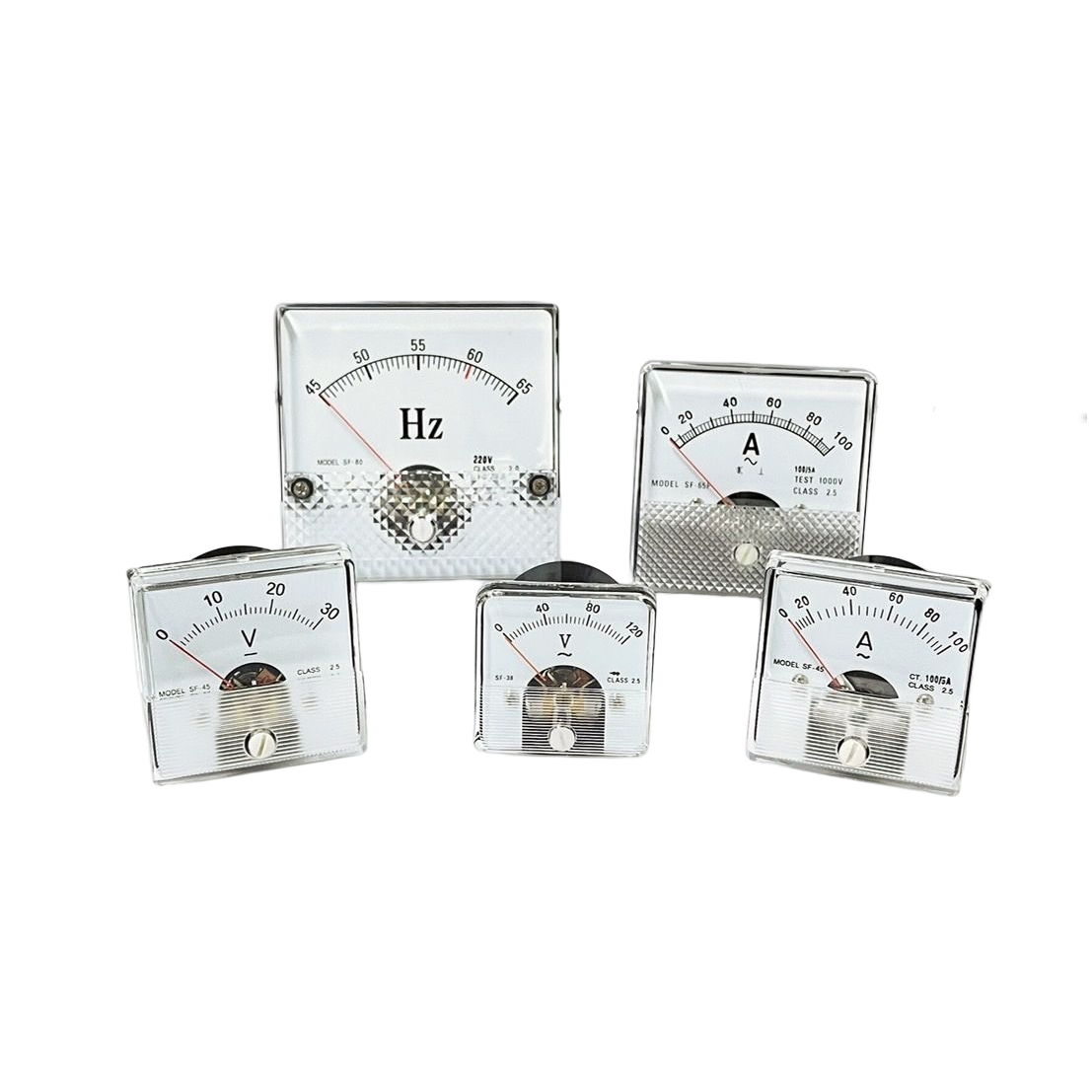

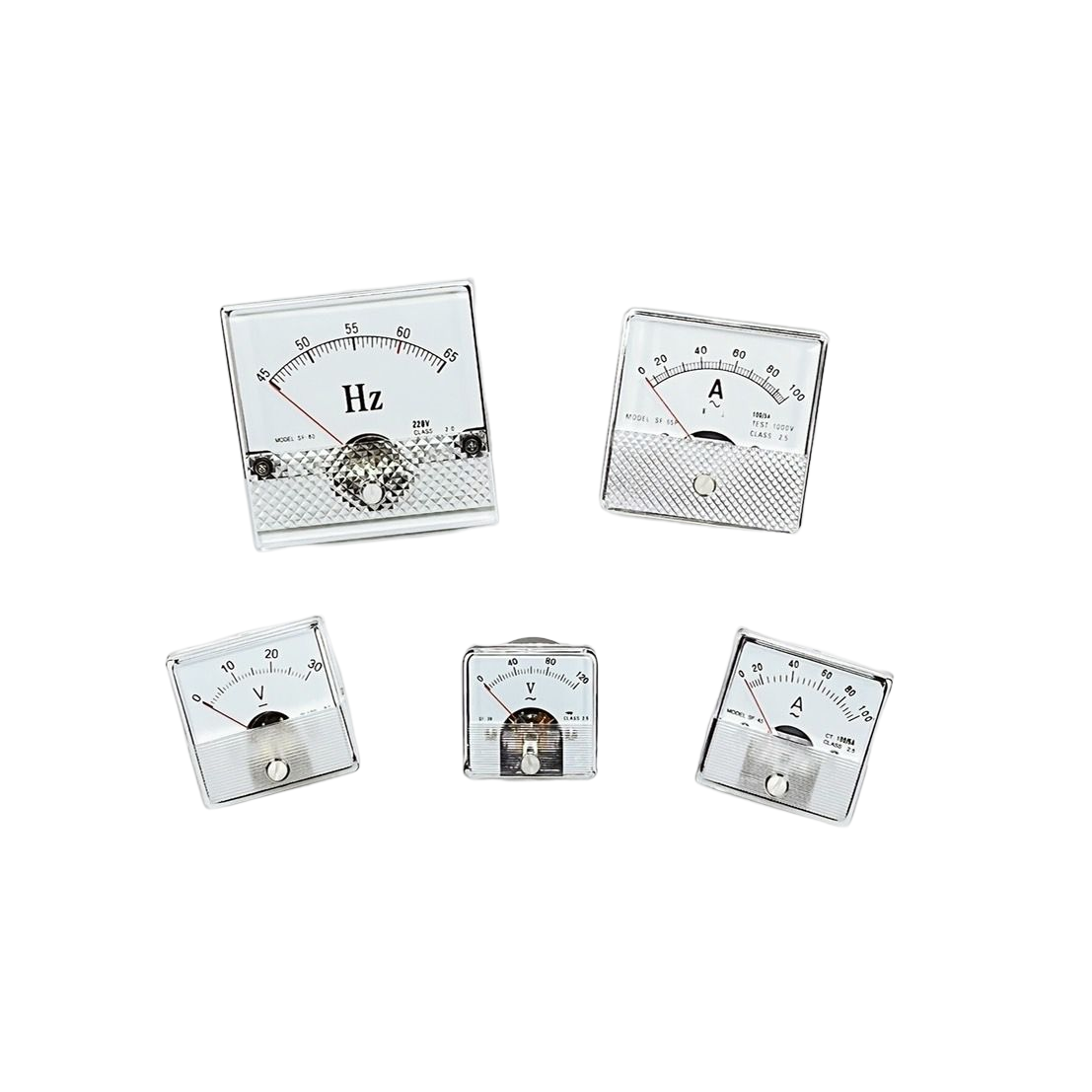

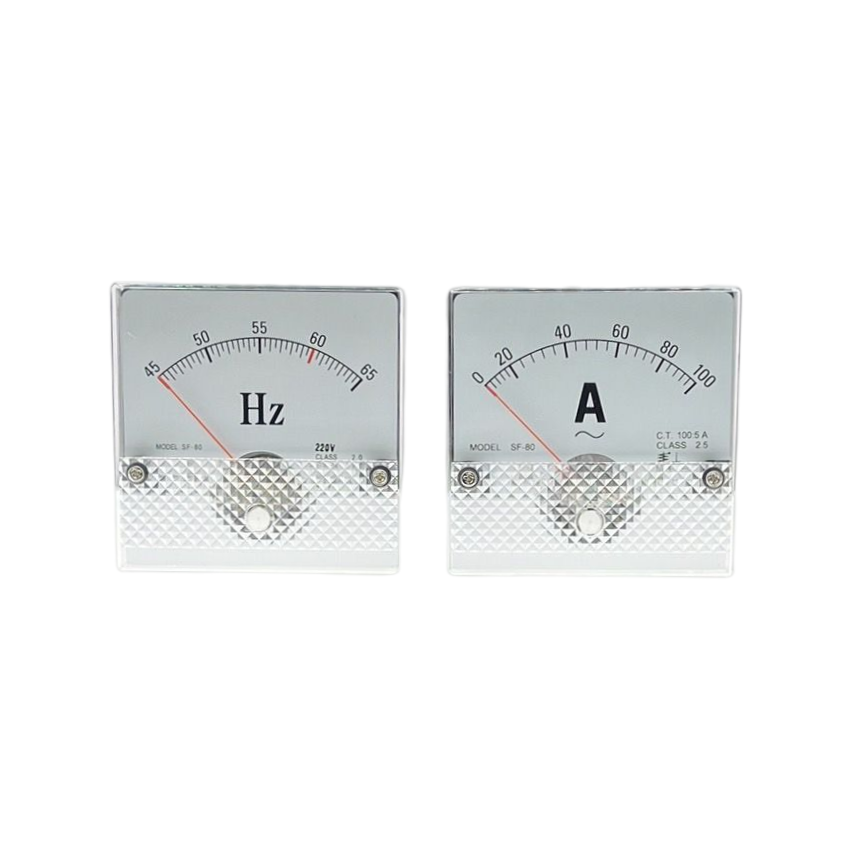

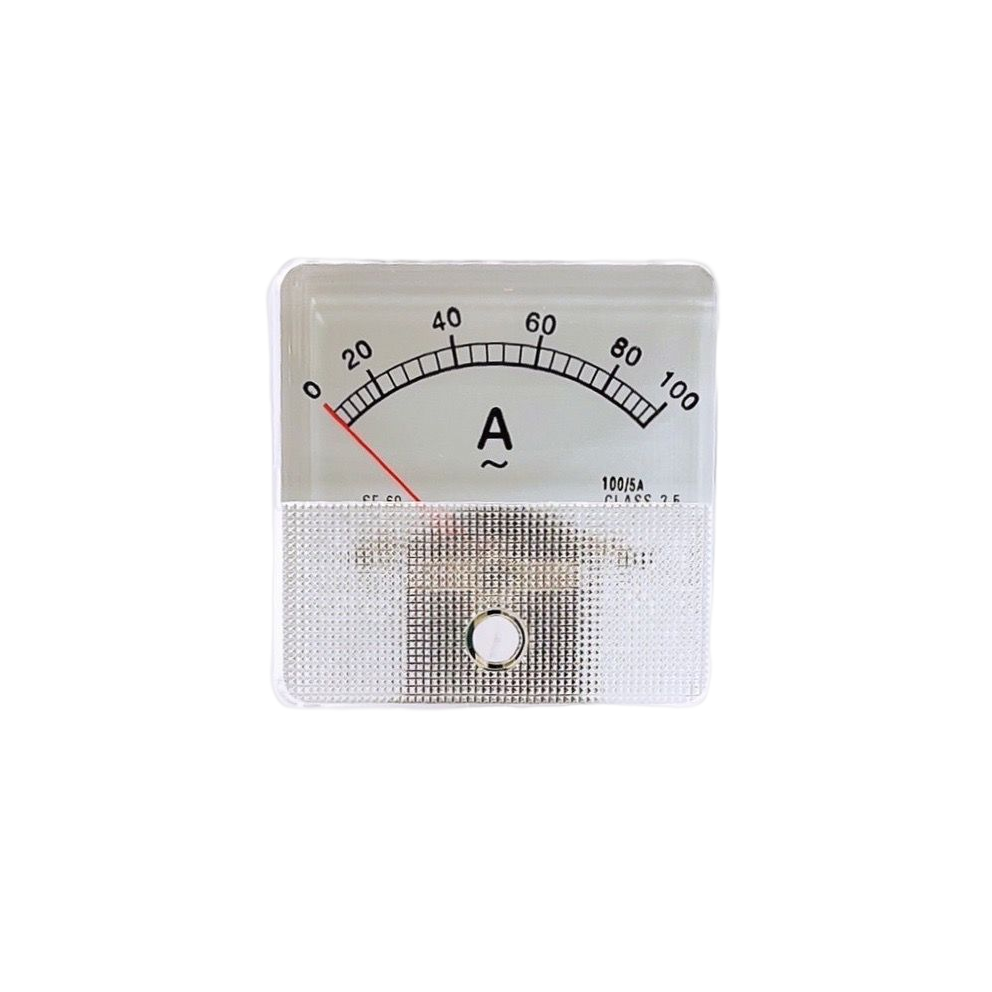

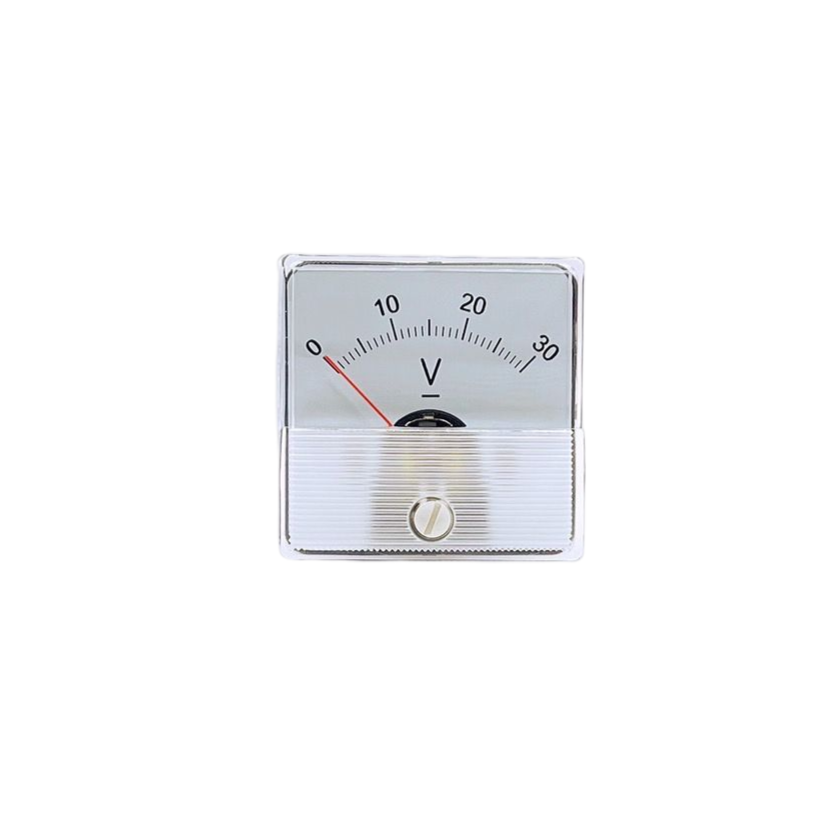

Analog Panel Meters

Specification
Measuring Range
Moving Coil Type: 50uA-10A DC/ 3V-1000V DC
Moving Iron Type: 50mA-20A AC/ 150V-600V AC
Rectifier Type: 3V-600V AC
Accuracy: Class 2.5%

Description



Add Inquiry (0)

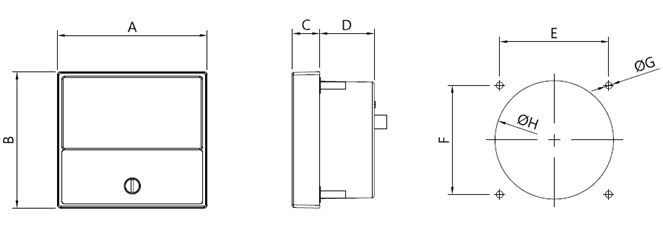

Model A B C D E F G H
120 120 120 18 49 100 105 5.5 110

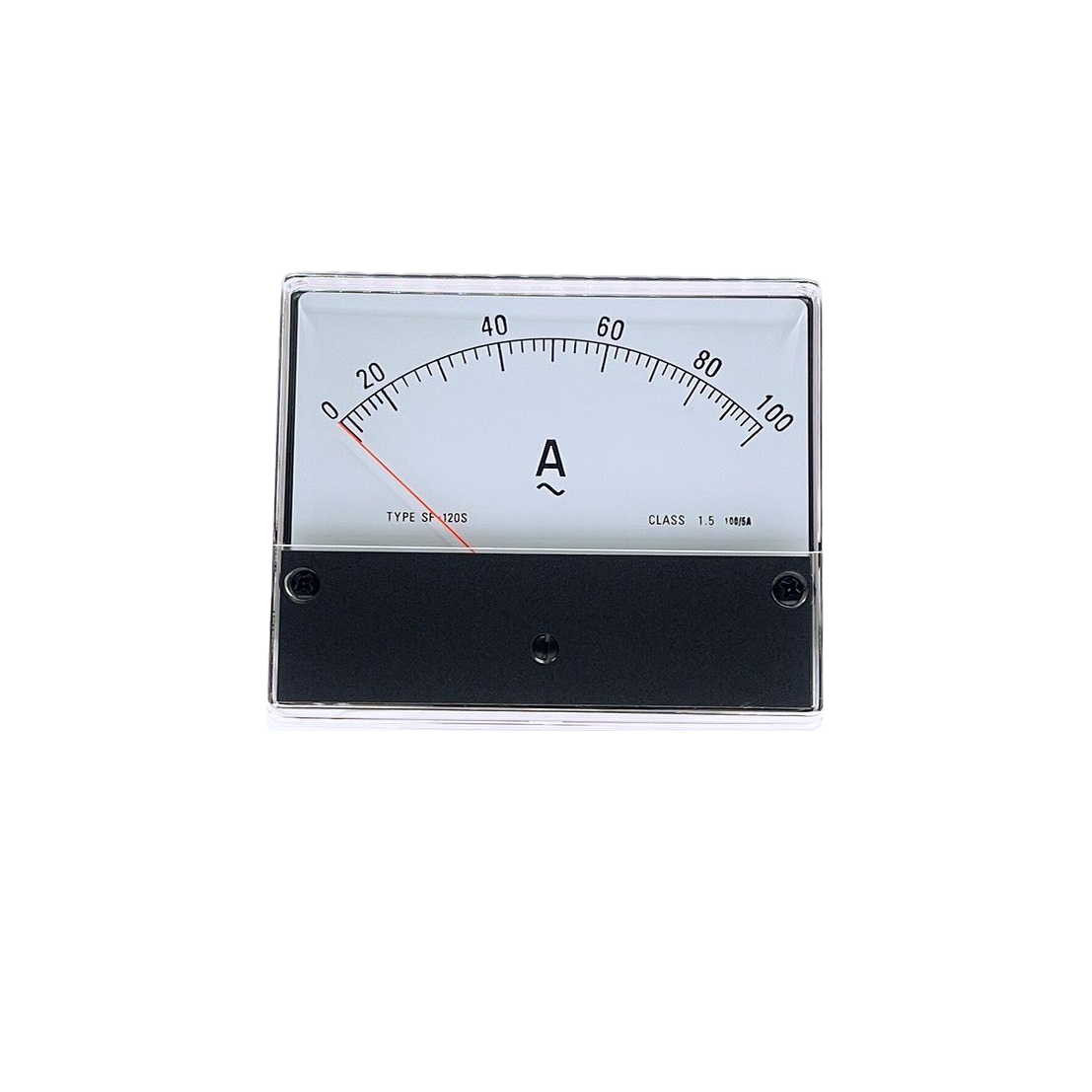

120S 120 100 14 23 103 82 4.5 70
100 101 101 14 25 80 80 3.5 84

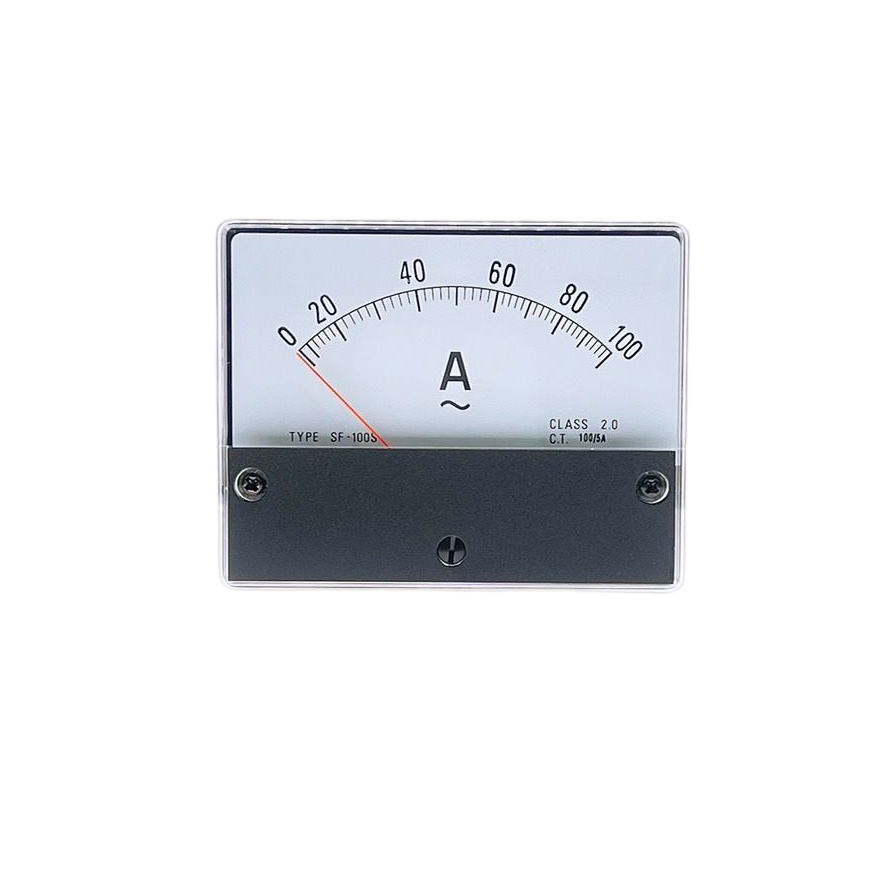

100S 100 80 14 23 84 63 4.5 65
100Y 90 90 13 30 - - 3.5 70
86 86 79 15 24 65 65 3.5 65
80 80 80 14 24 65 65 3.5 64
680 80 60 13 24 48 46 3.5 51

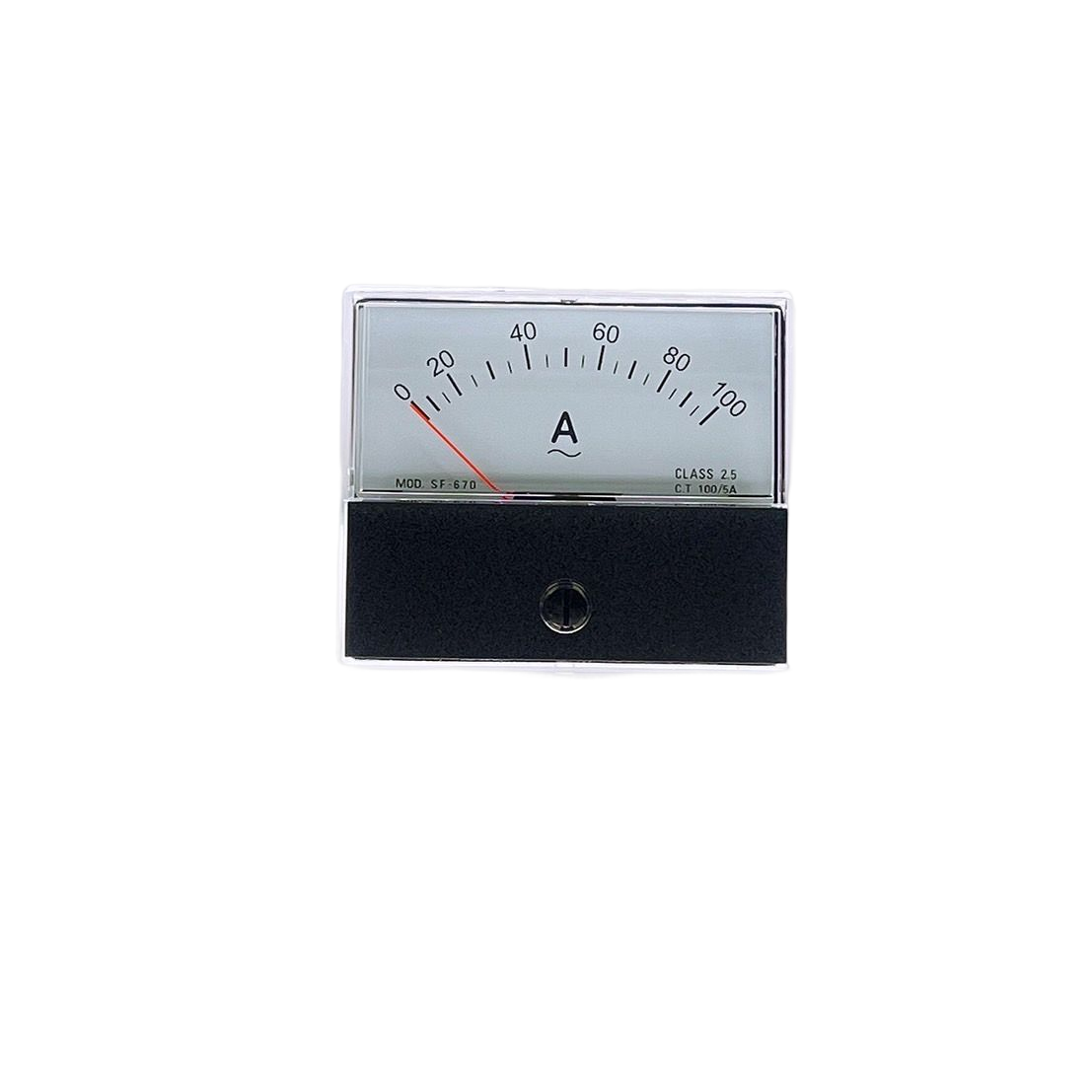

670 70 60 10 23 48 48 3.5 51
65 65 65 14 24 51 51 3.5 52
60 60 60 12 24 49 49 3.5 51

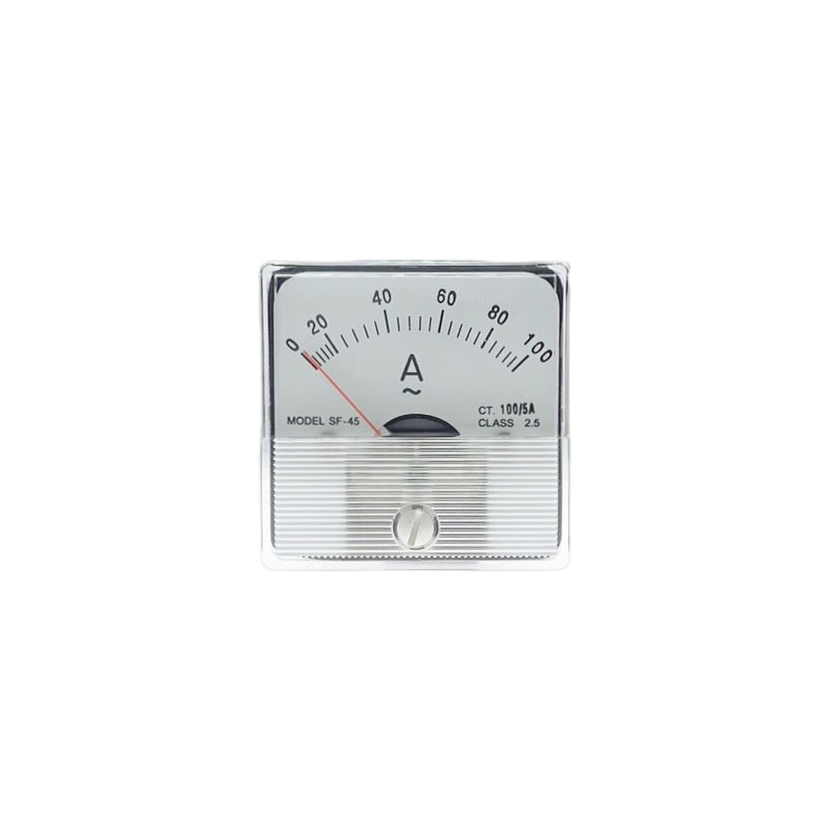

45 50 50 10 22 38 38 3.5 44

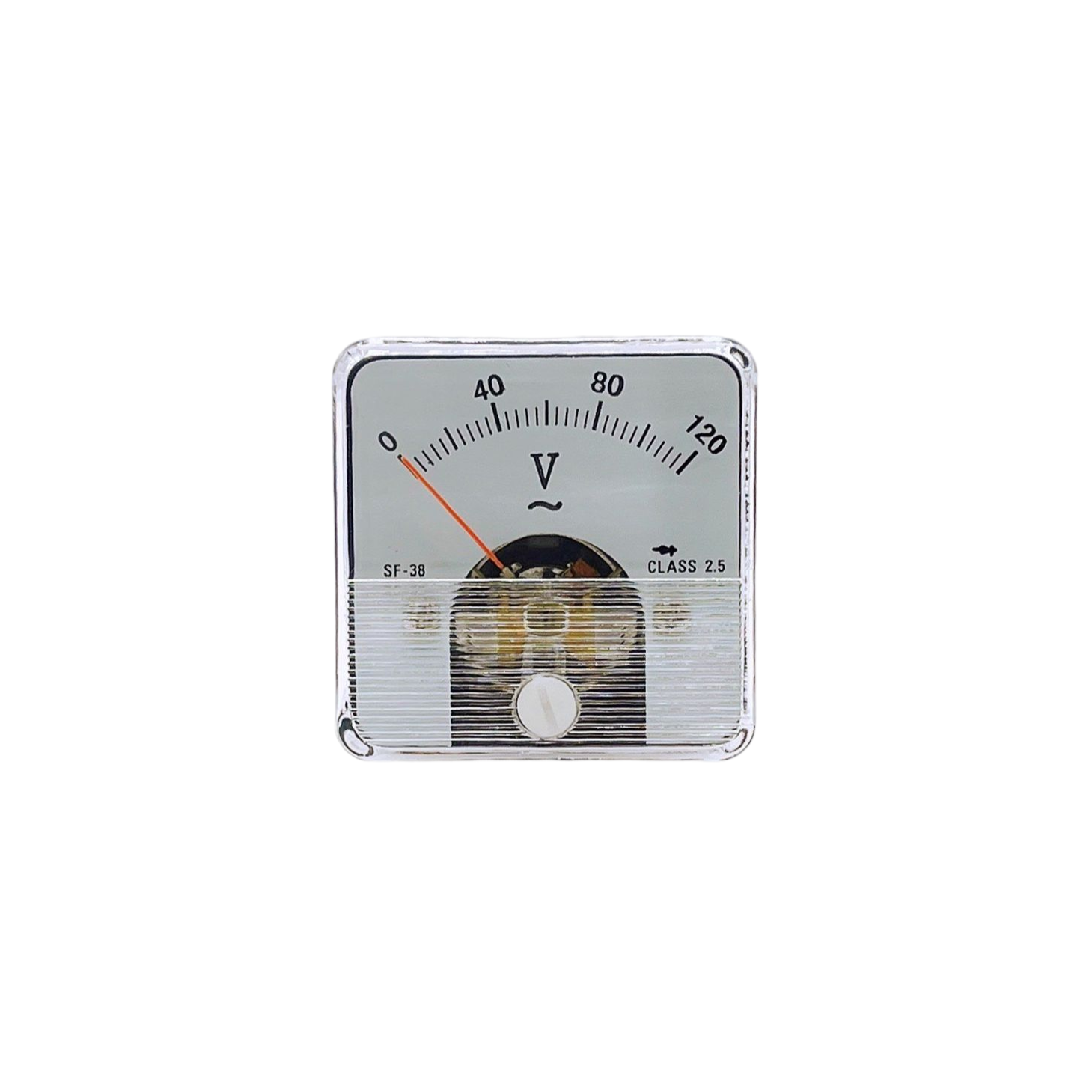

38 44 44 10 23 32 32 3.5 38
