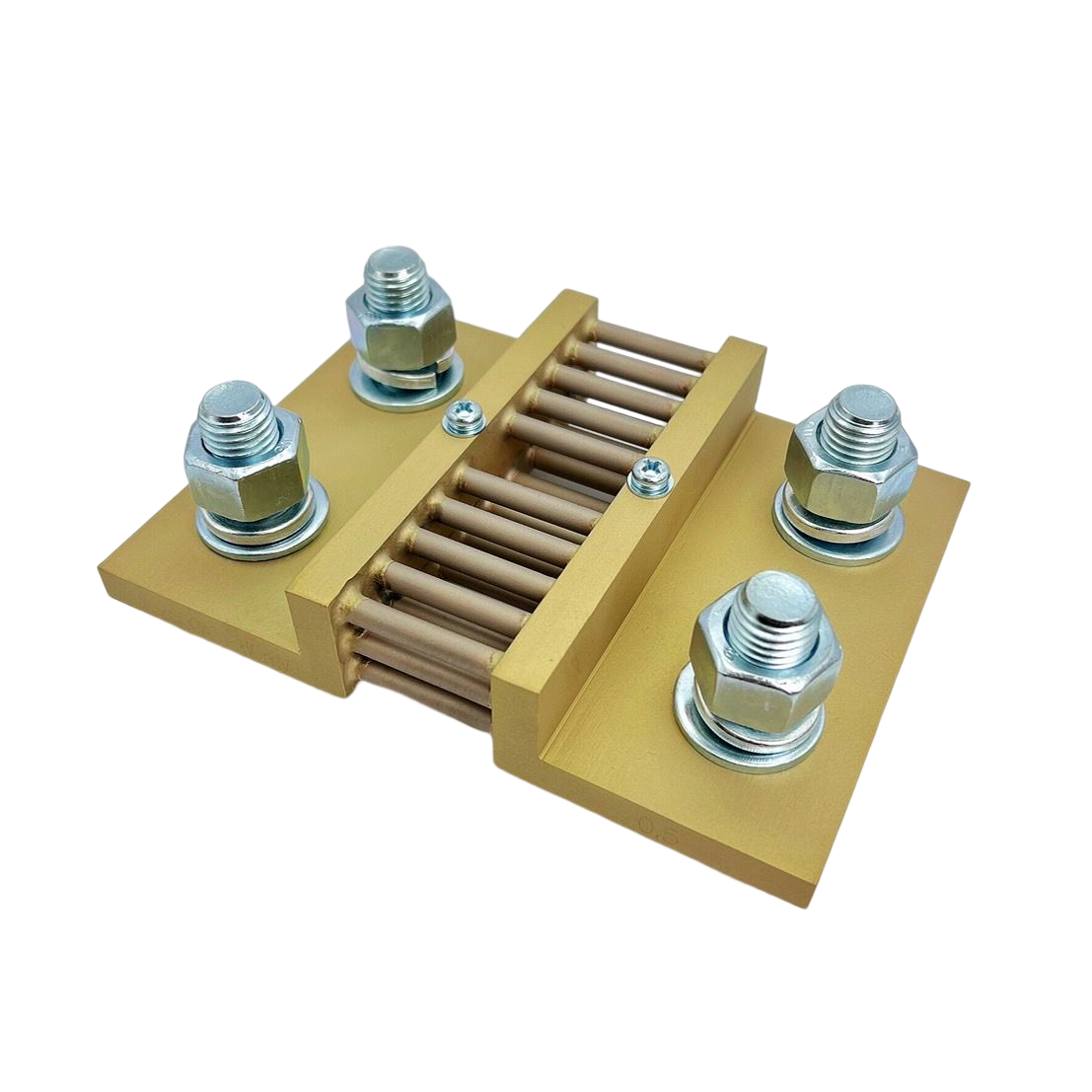

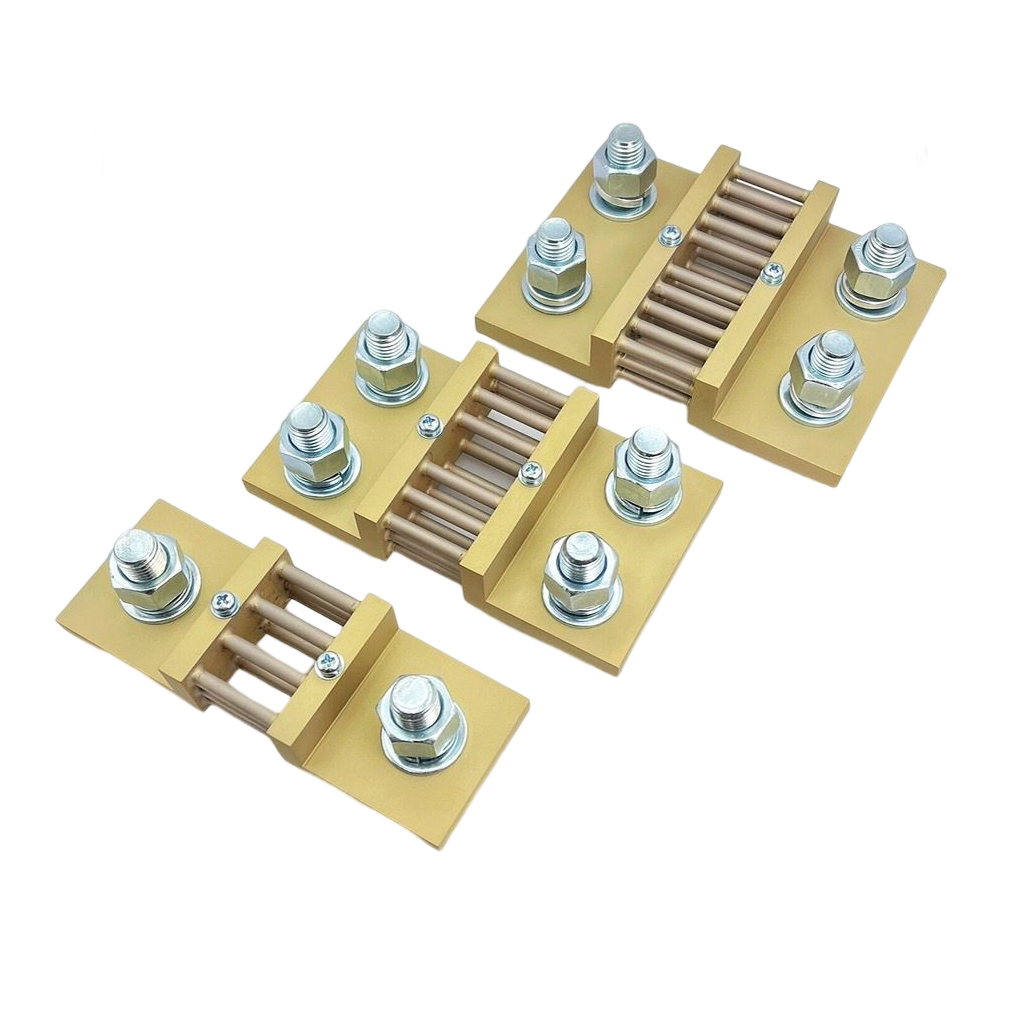

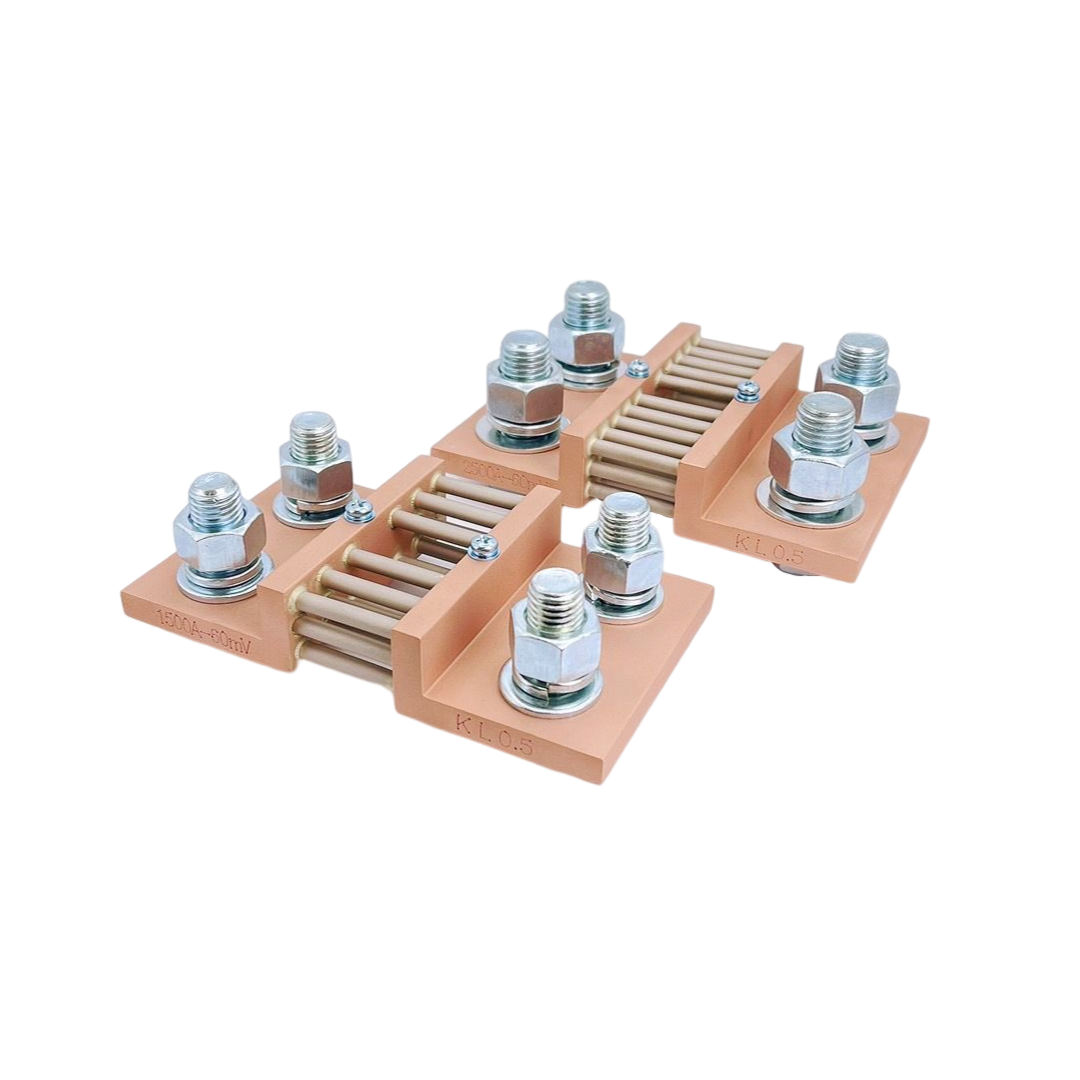

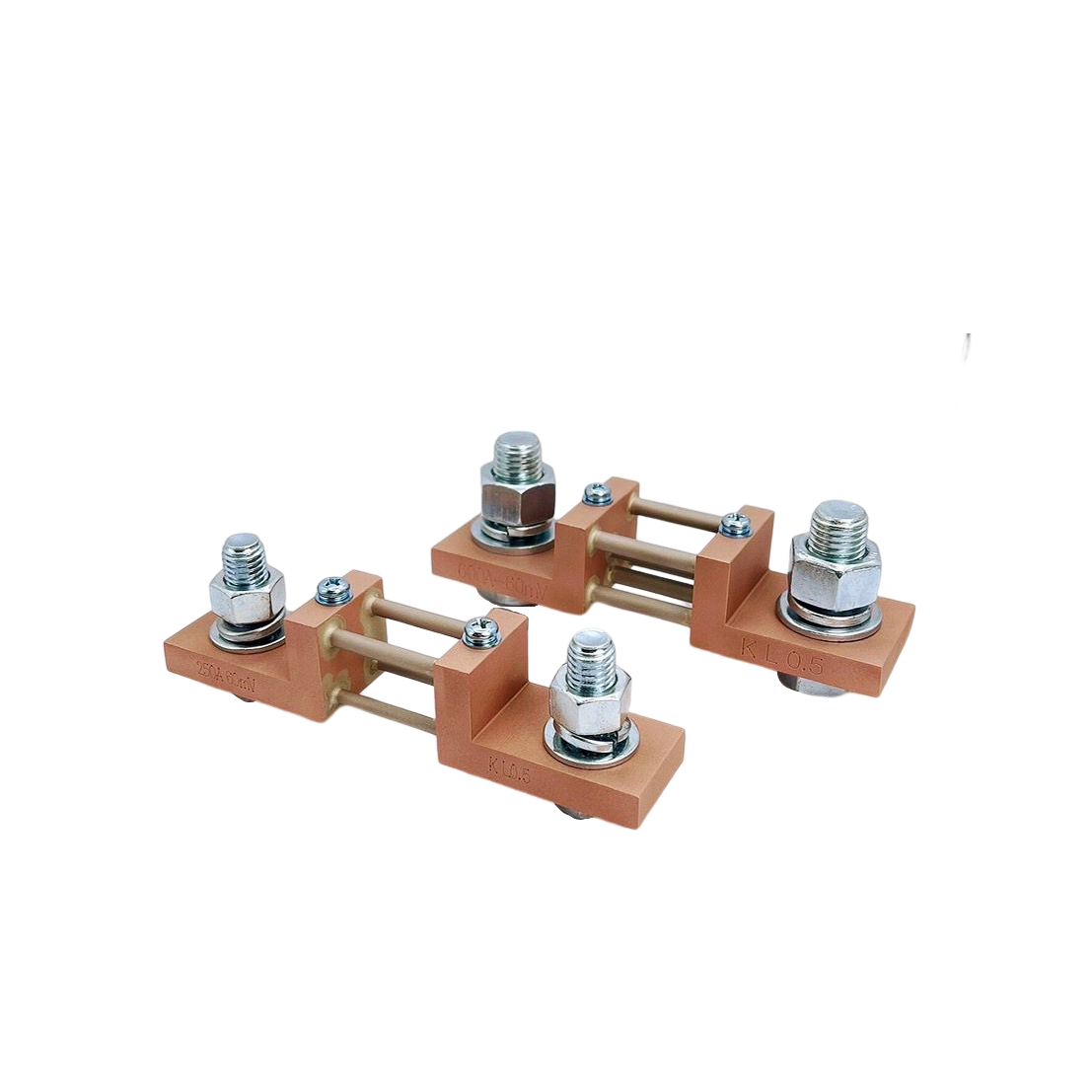

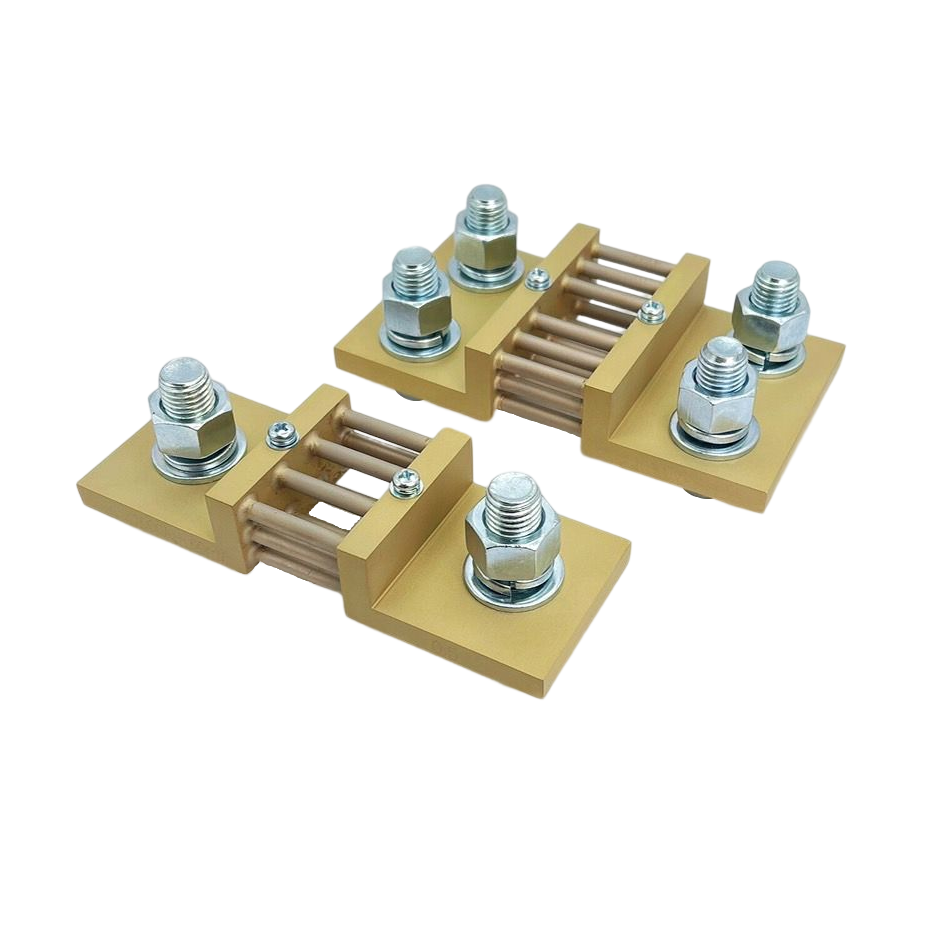

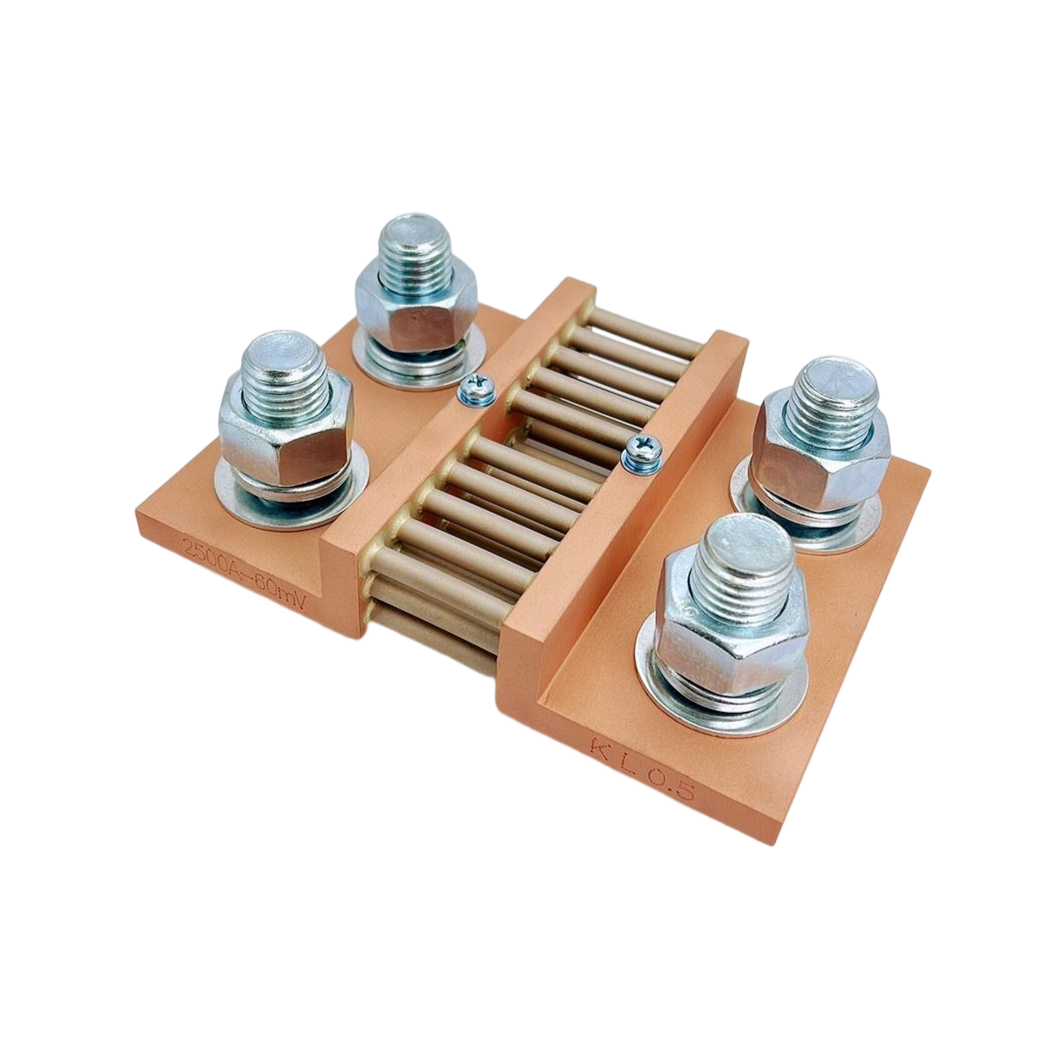

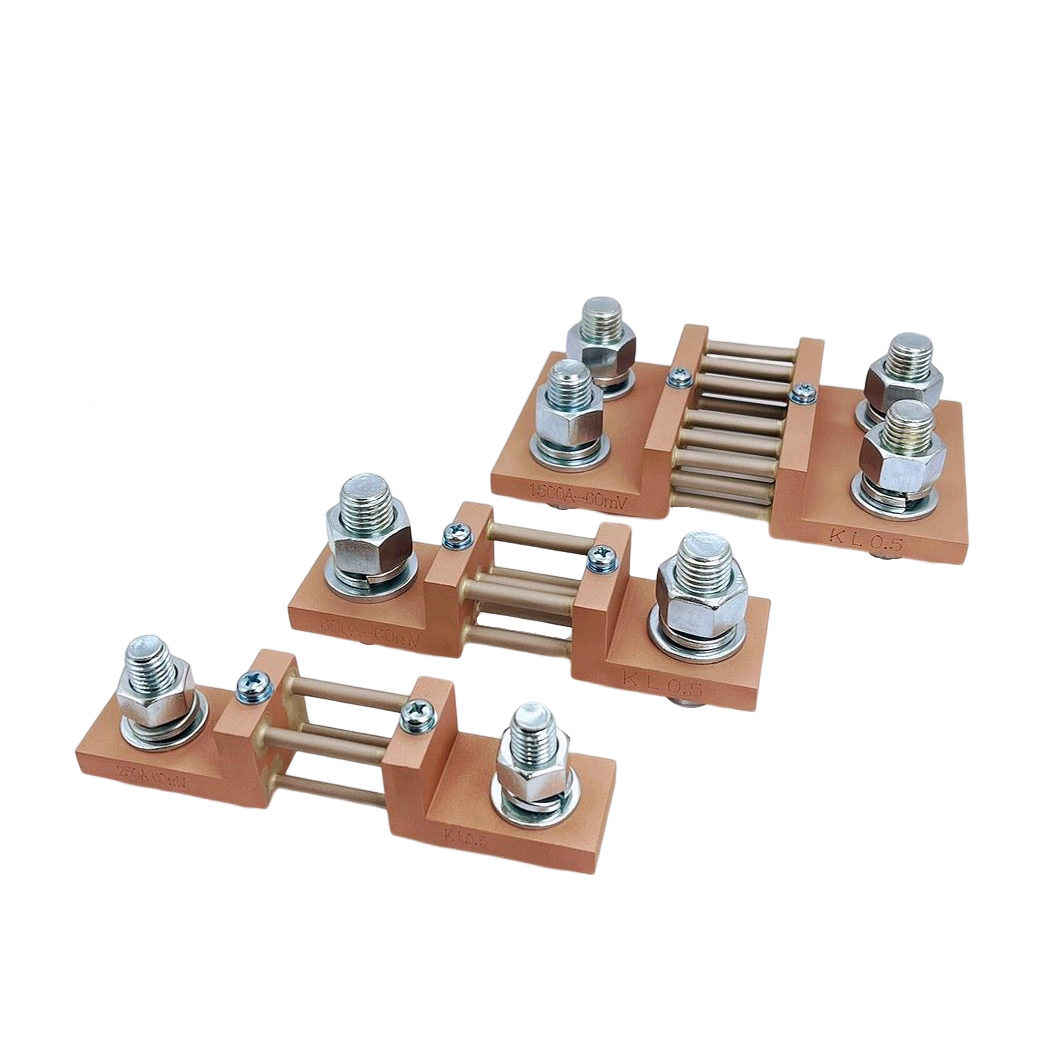

DIN Series Type B
- Specification
- Current ranging from 200 A to 3000 A with a voltage drop of 60 mV or 150 mV are available.
Description
Environmental Condition-Operation temperature: -10 to +55 °C
-Storage temperature: -25 to +65 °C
-Relative humidity: ≤ 75 % (no condensation)
-Climatic conditions: climatic class 3 according to VDE/VDI 3540
Applied Standard
-DIN EN 60051
-DIN 43703
Accuracy Class 0.5 (optional Class 0.2 or 0.1)
Material
-Resistor: Manganin
-Type A: Brass
-Type B: Brass/Copper
-Type C: copper
Voltage drop: 60mV; 100mV; 150mV; 300mV
Overload range:
-Continously: 1.2 times rated current
-5 sec. max. (≤ 2,000A):5 times rated current
-5 sec. max. (> 2,000A ... 10,000A):2 times rated current
