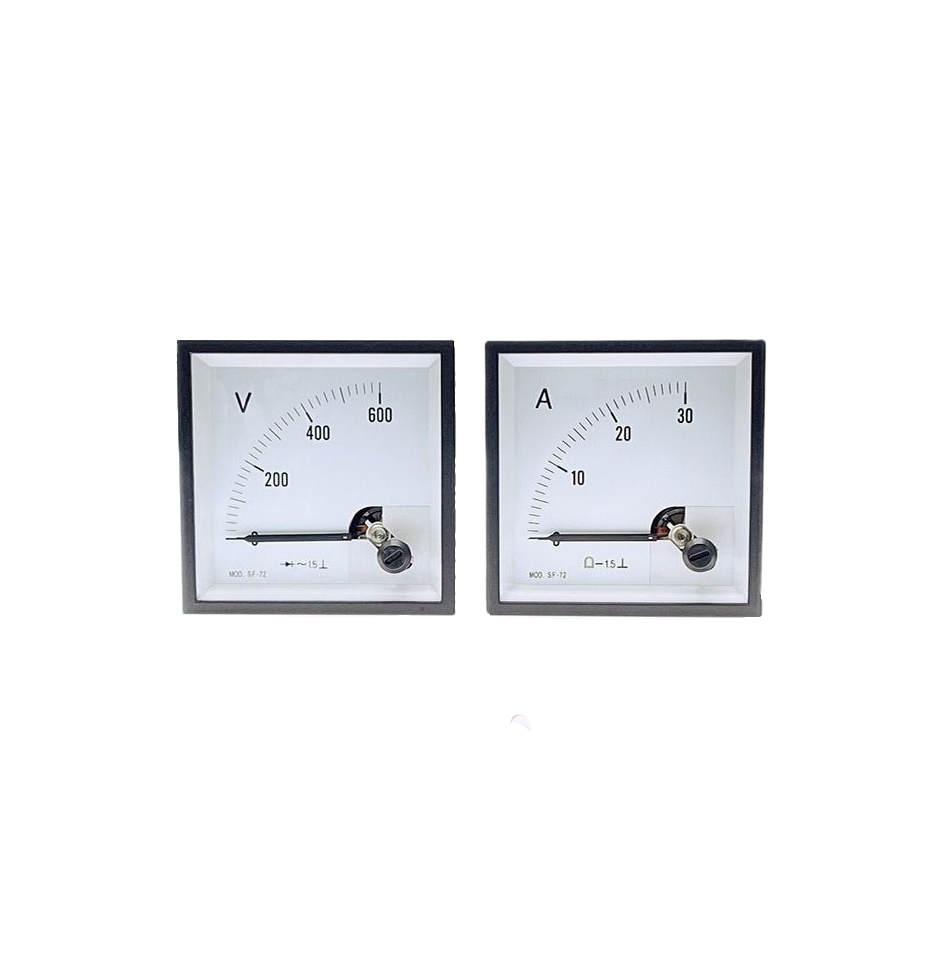

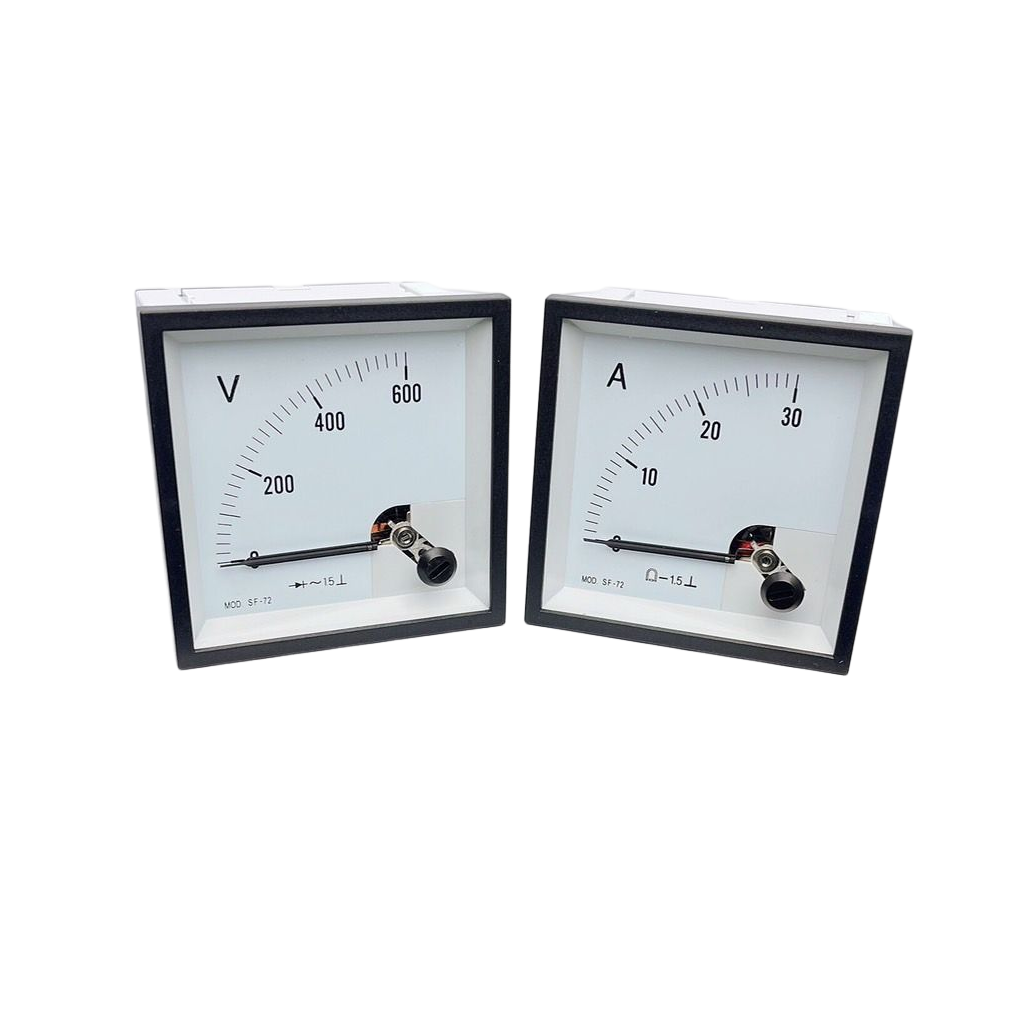

DIN Series - Moving Coil
- Specification
- 50uA~50A direct connected
- 50mV~600V direct connected
- 50mV~300mV shunt operated
- AC Ampere Overload Scale: 200%, 300%, 600%
| Item Code | Frame Size | Measuring Range | Model | Class (%) |
|---|---|---|---|---|

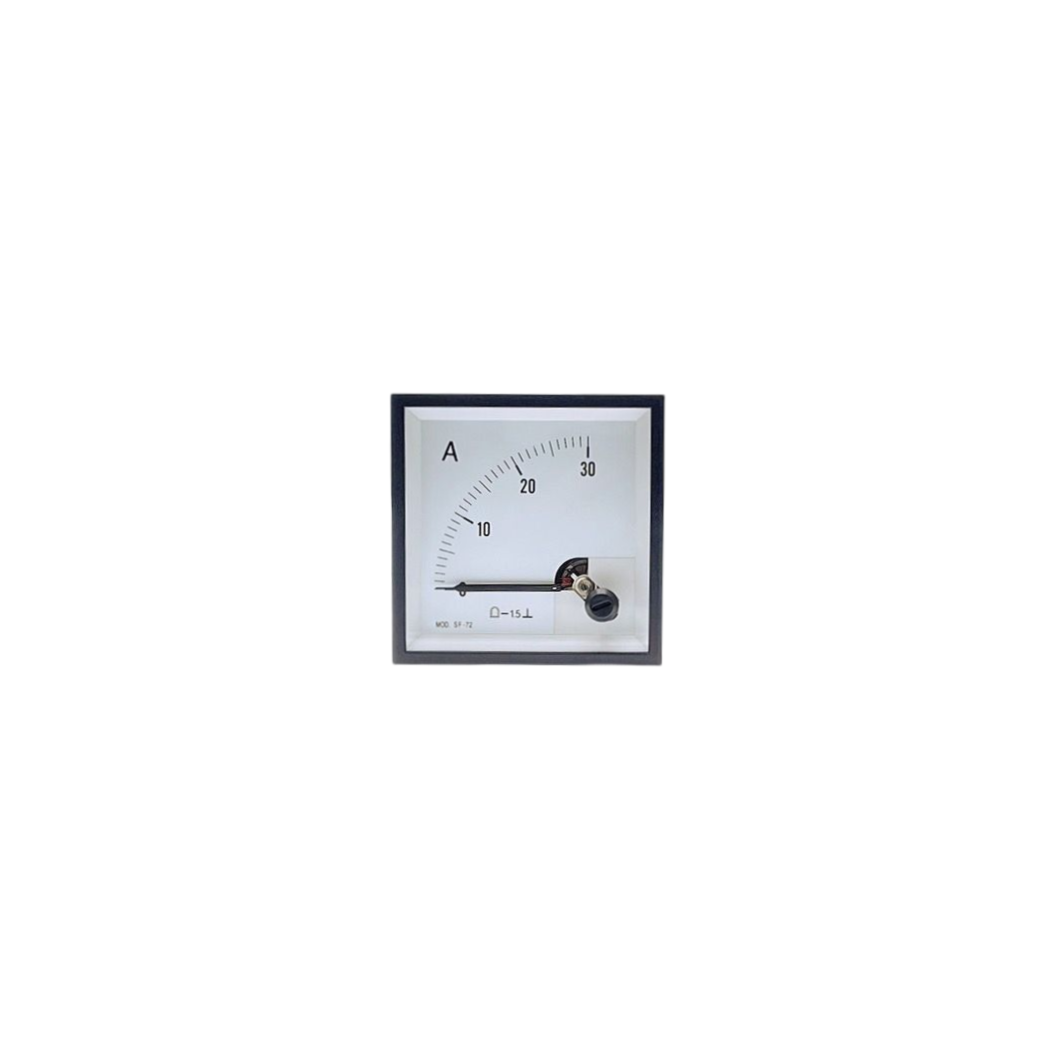

| Direct Input DC Ammeter | ||||
| MDCA-96 | 96X96 | 50uA~5mA | ±1.5% / ±2.5% | |
| MDCA-72 | 72X72 | 50uA~5mA | ±1.5% / ±2.5% | |
| MDCA-48 | 48X48 | 50uA~5mA | ±1.5% / ±2.5% | |
| With Shunt DC Ammeter | ||||
| MDCA-96S | 96X96 | 1A~1000A | 50mV | ±1.5% / ±2.5% |
| MDCA-72S | 72X72 | 1A~1000A | 50mV | ±1.5% / ±2.5% |
| MDCA-48S | 48X48 | 1A~1000A | 50mV | ±1.5% / ±2.5% |

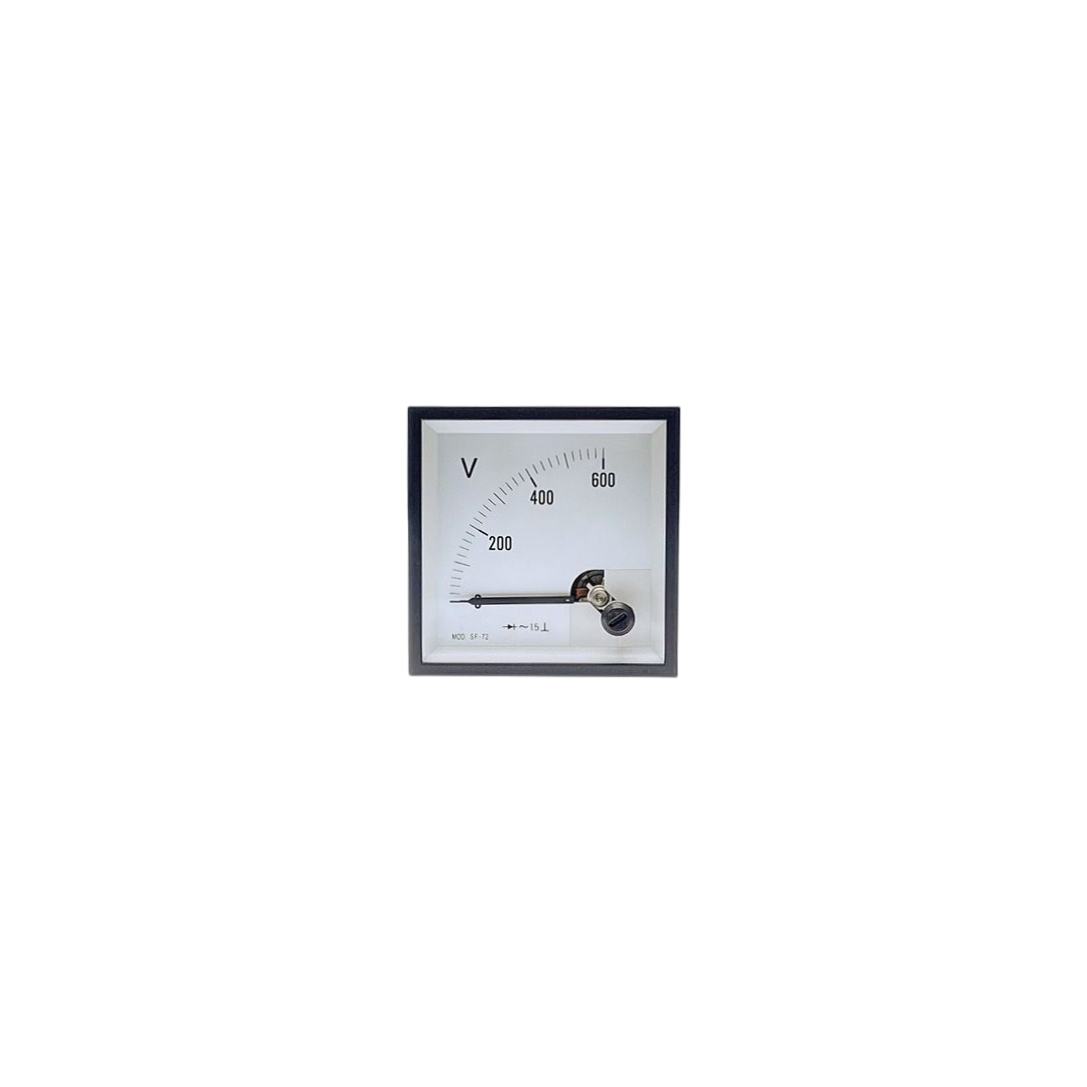

| With Shunt DC Voltmeter | ||||
| MDCV-96 | 96X96 | 1V~600V | ±1.5% / ±2.5% | |
| MDCV-72 | 72X72 | 1V~600V | ±1.5% / ±2.5% | |
| MDCV-48 | 48X48 | 1V~600V | ±1.5% / ±2.5% |
