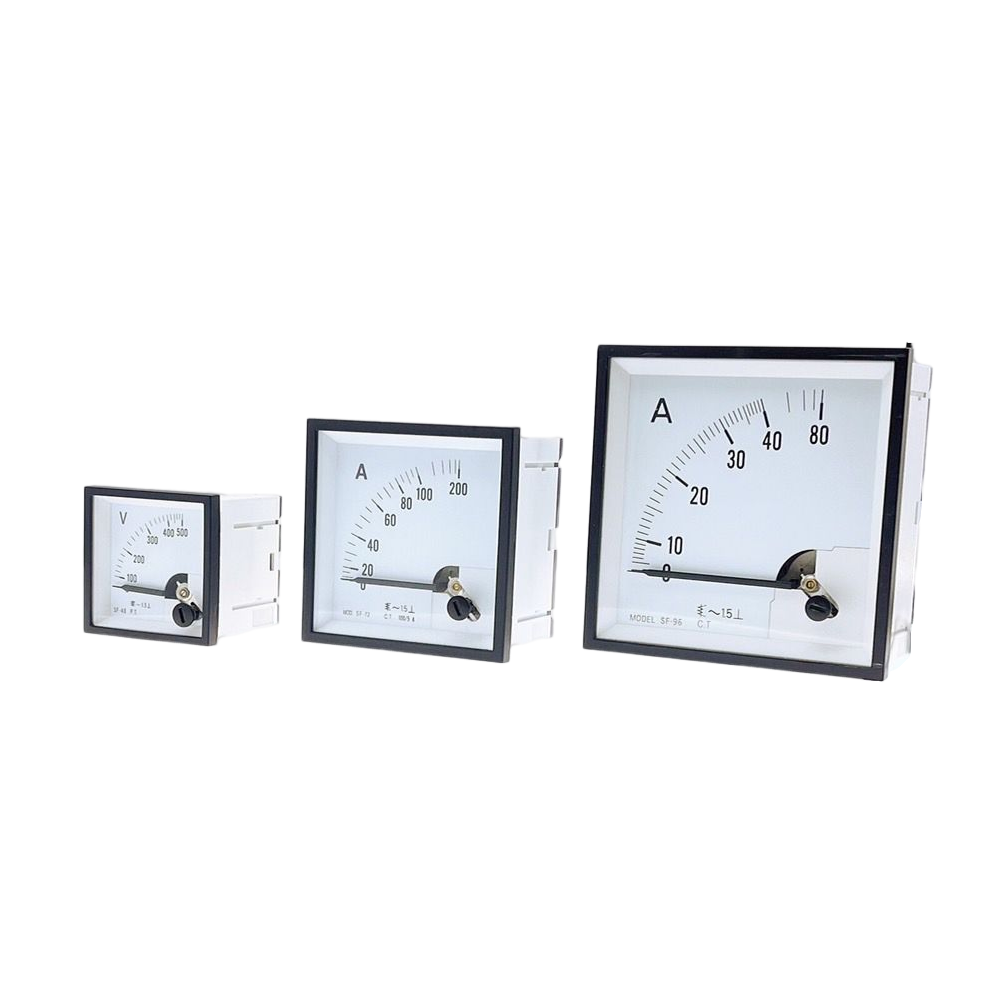

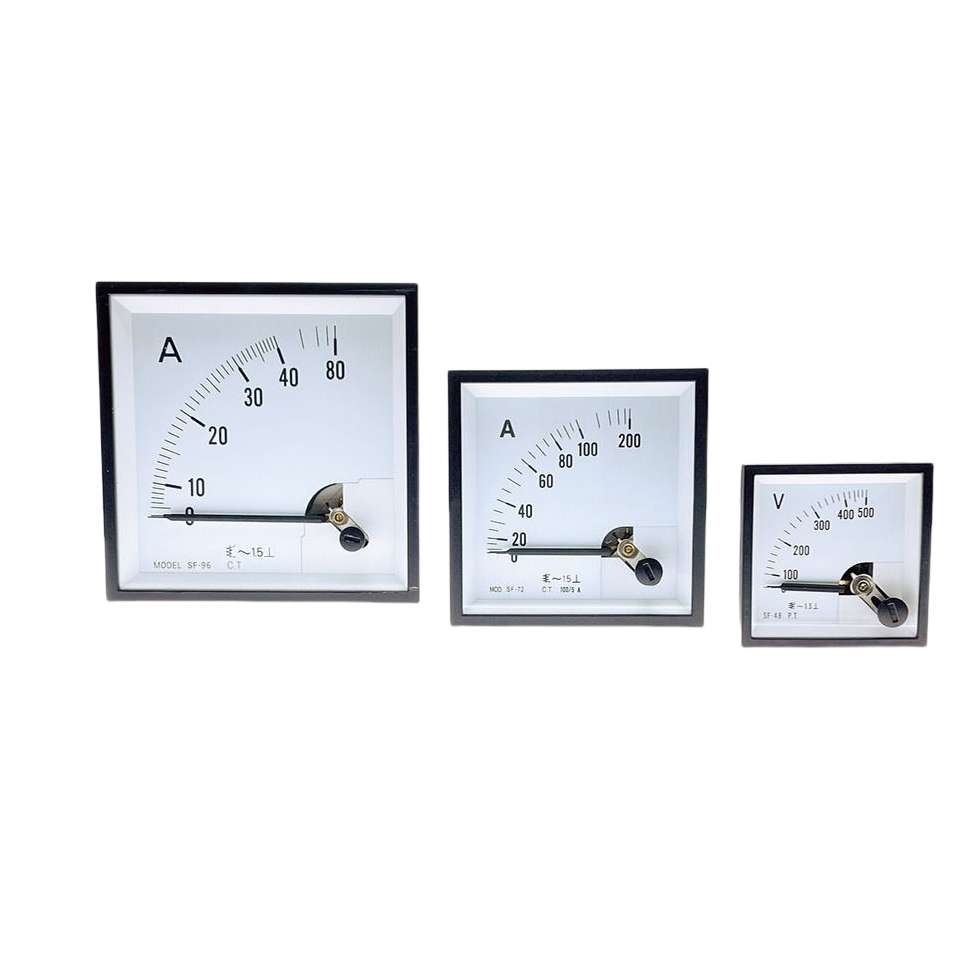

DIN Series - Moving Iron
- Specification
- 1A~50A direct connected
- 1A / 5A CT operated
- 100V~600V direct connected
- AC Amoere Overload Scale: 200%, 300%, 600%
| Item Code | Frame Size | Measuring Range | Model | Class (%) |
|---|---|---|---|---|
| Direct Input AC Ammeter | ||||
| MACA-96 | 96X96 | 1A~100A | ±1.5% / ±2.5% | |
| MACA-72 | 72X72 | 1A~100A | ±1.5% / ±2.5% | |
| MACA-48 | 48X48 | 1A~100A | ±1.5% / ±2.5% | |

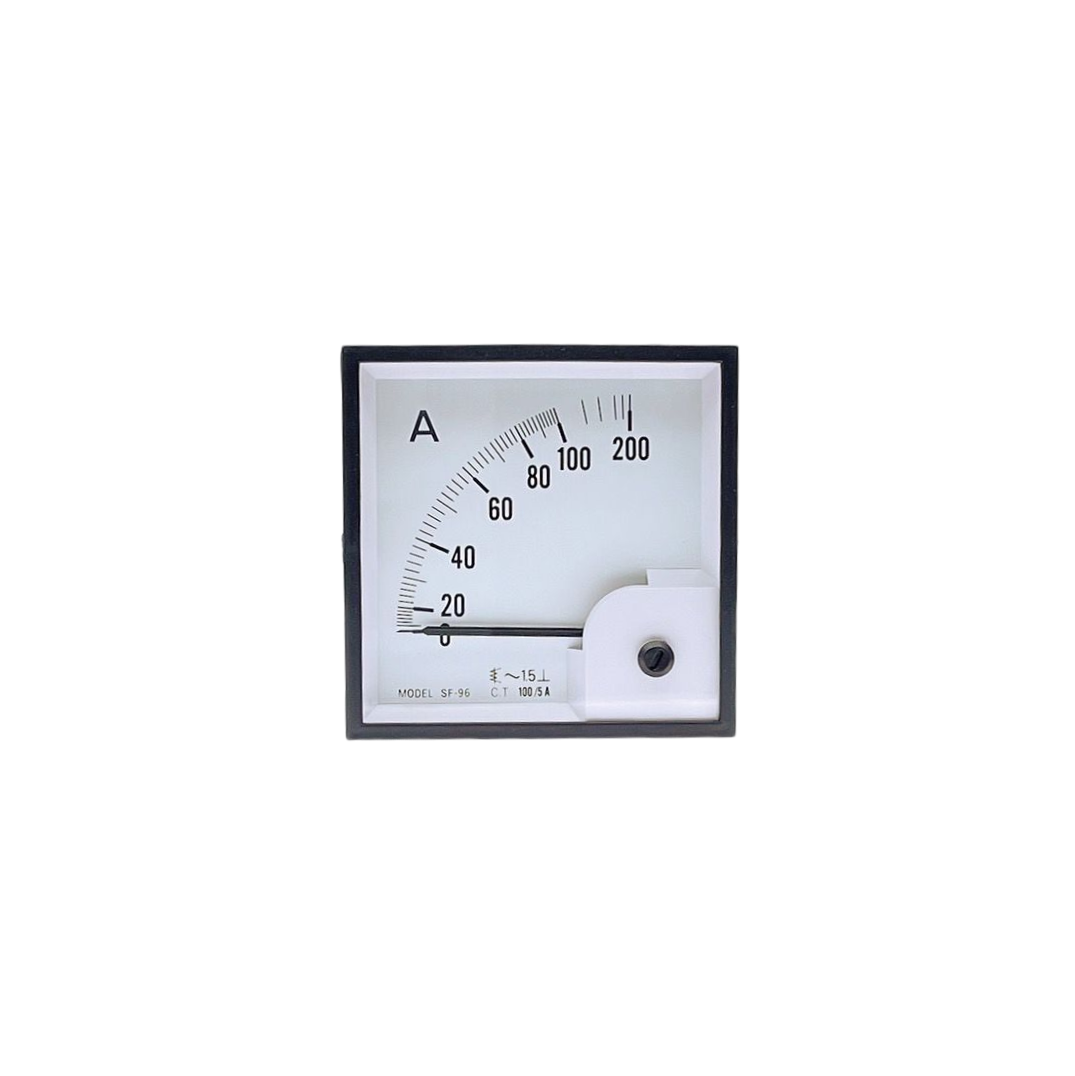

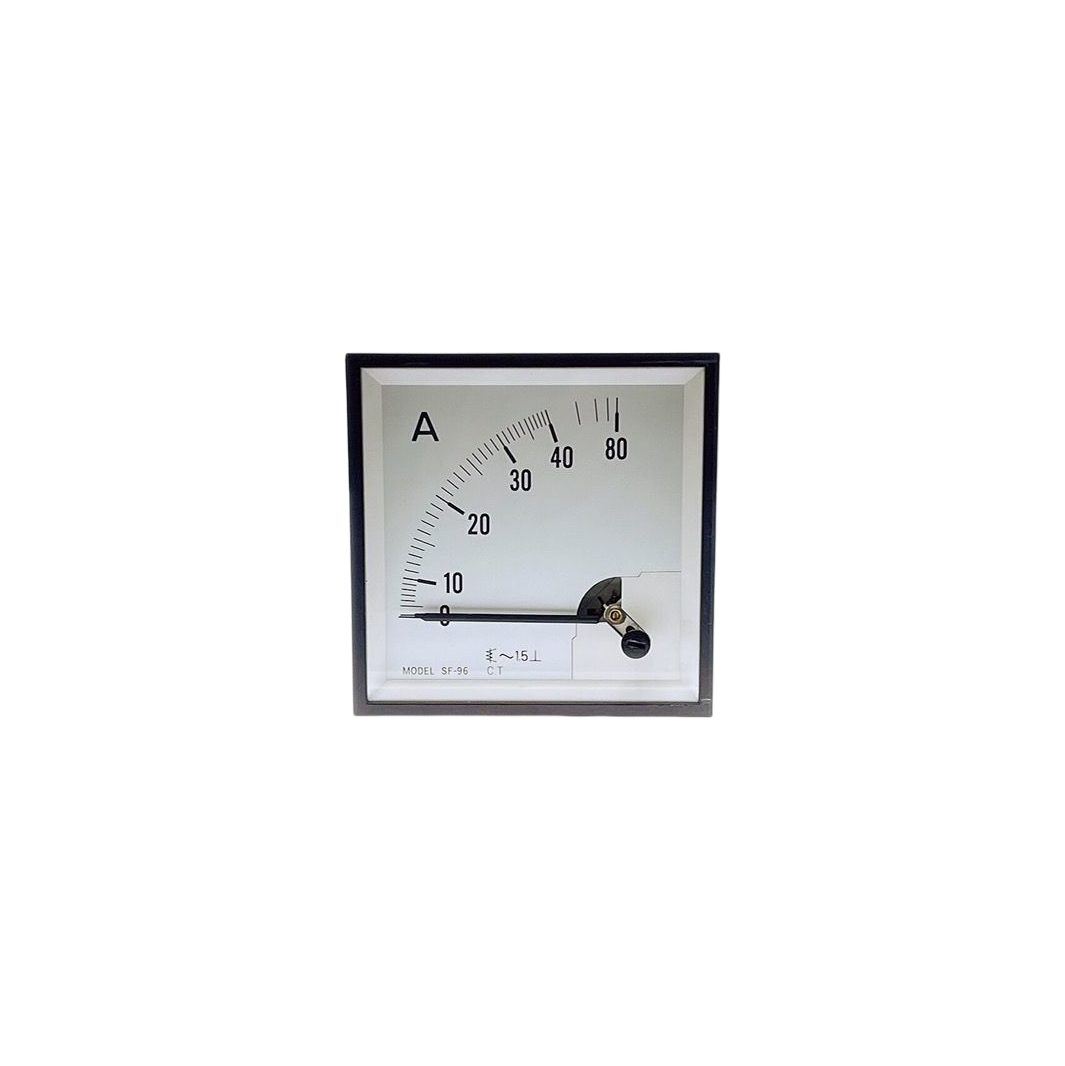

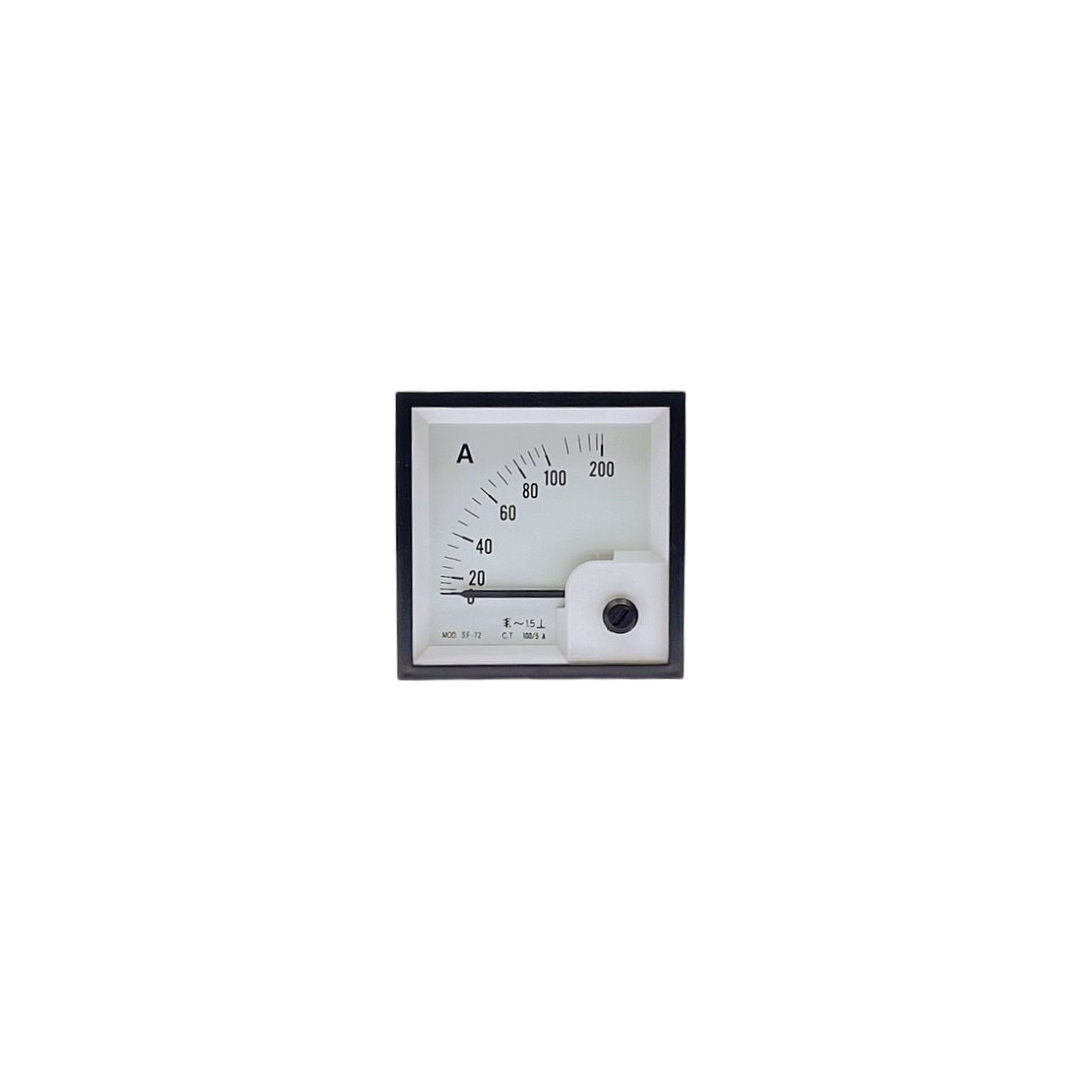

| With CT AC Ammeter | ||||
| MACA-96CT | 96X96 | 100A~6000A | /5A | ±1.5% / ±2.5% |
| MACA-72CT | 72X72 | 100A~6000A | /5A | ±1.5% / ±2.5% |
| MACA-48CT | 48X48 | 100A~6000A | /5A | ±1.5% / ±2.5% |
| Direct Input AC Voltmeter | ||||
| MACV-96 | 96X96 | 100V~600V | ±1.5% / ±2.5% | |
| MACV-72 | 72X72 | 100V~600V | ±1.5% / ±2.5% | |
| MACV-48 | 48X48 | 100V~600V | ±1.5% / ±2.5% | |

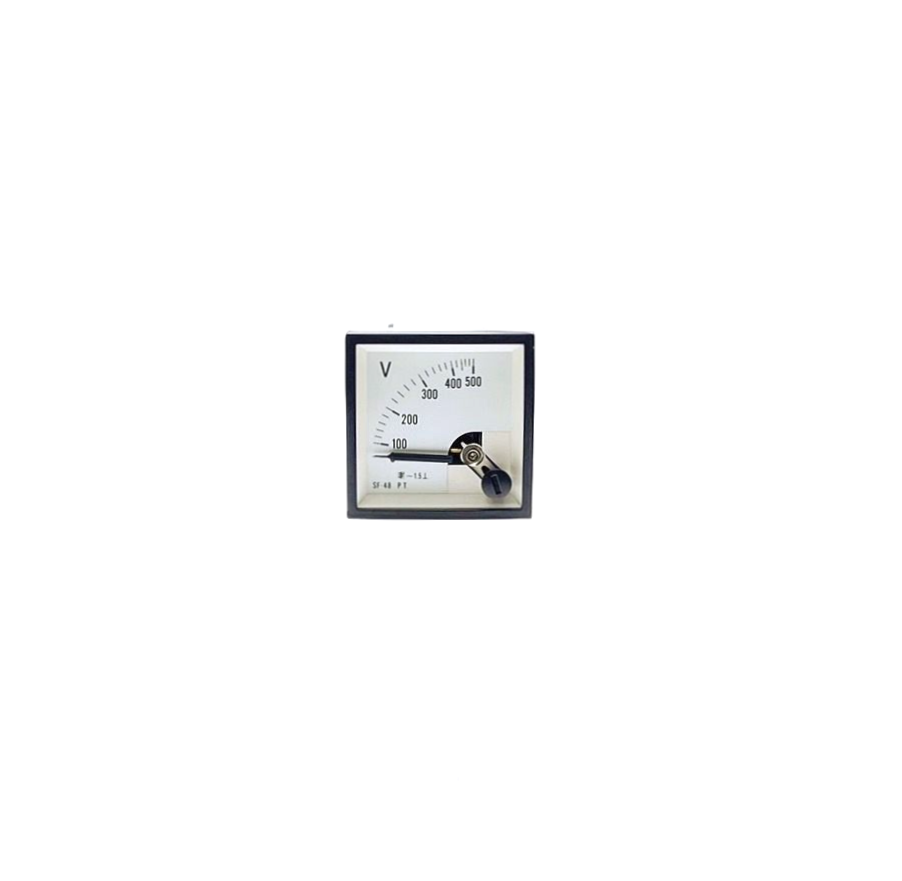

| With PT AC Voltmeter | ||||
| MACV-96PT | 96X96 | 0~45KV | /5A | ±1.5% / ±2.5% |
| MACV-72PT | 72X72 | 0~45KV | /5A | ±1.5% / ±2.5% |
| MACV-48PT | 48X48 | 0~45KV | /5A | ±1.5% / ±2.5% |
