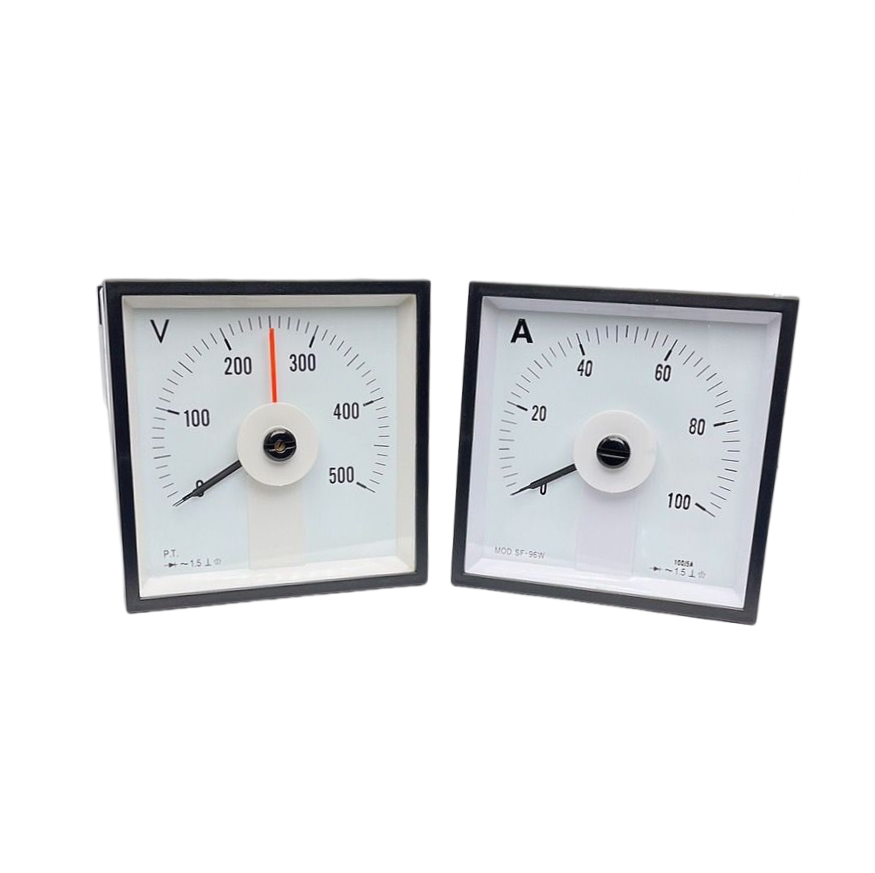

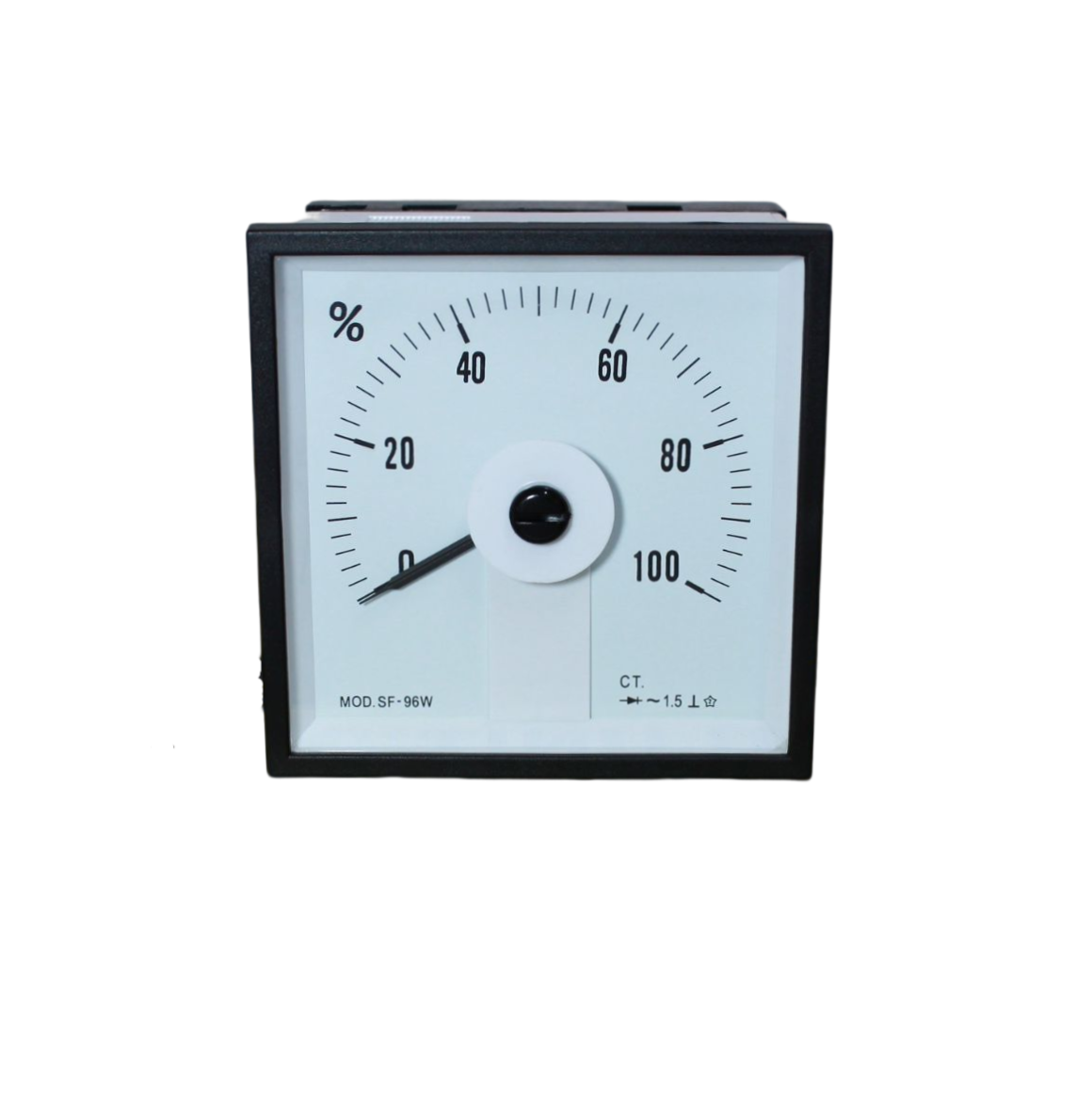

DIN Series - Wide Angle

Specification
1A / 5A CT operated
Full scale deflection: 240°/ 250°
Ranges higher than 30A DC, use external shunt with 50mV DC Ammeter
Ranges higher than 300V DC, use external Multiplier with a 1mA Voltmeter
Ranges higher than 5A AC, use external Current Transformer with 5mA Ammeter
Ranges higher than 600V AC, use external Potential Transformer with 150V AC Voltmeter
Add Inquiry (0)
Item Code Frame Size Measuring Range Model Class (%)

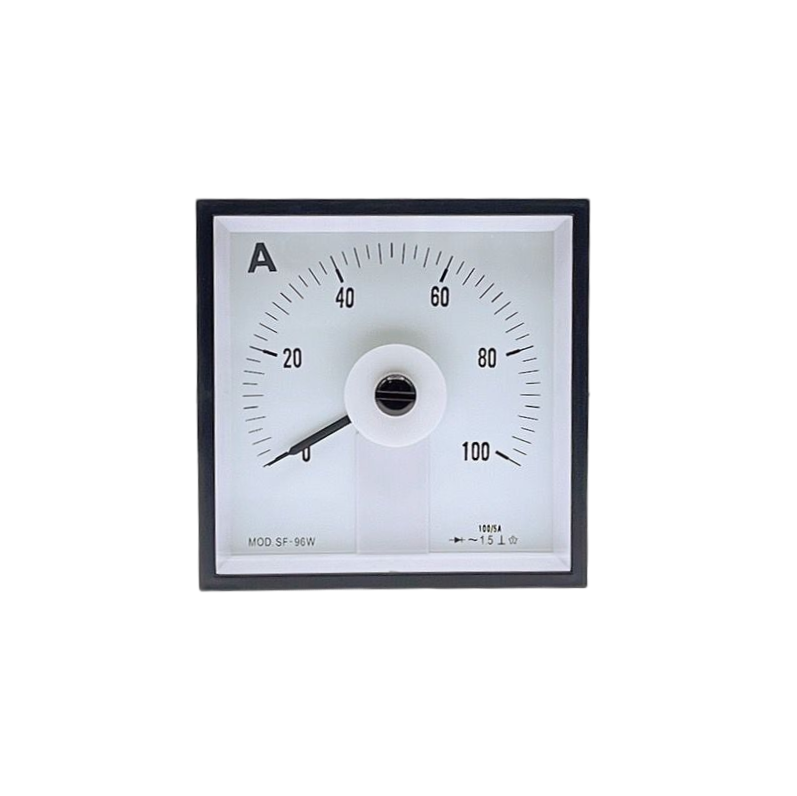

AC Ammeter
WMDCA-96 96X96 1~10000A 1A/5A ±1% / ±1.5% / ±2.5%
WMDCA-72 72X72 1~10000A 1A/5A ±1% / ±1.5% / ±2.5%

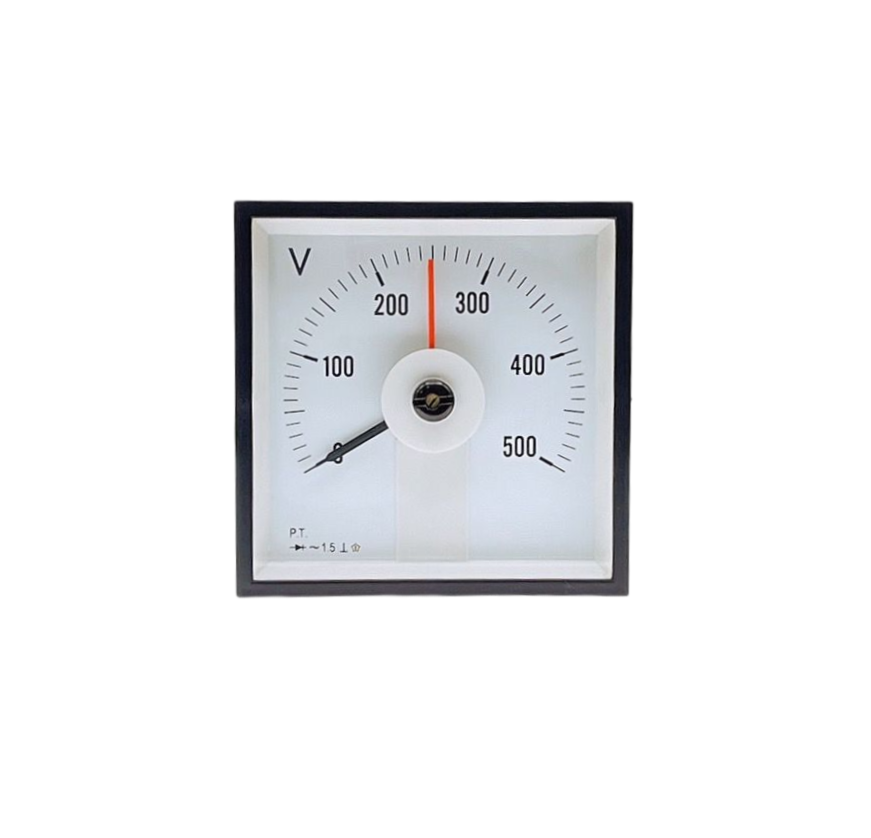

AC Vlotmeter
WMDCV-96 96X96 150V-600V   ±1% / ±1.5% / ±2.5%
WMDCV-72 72X72 150V-600V   ±1% / ±1.5% / ±2.5%

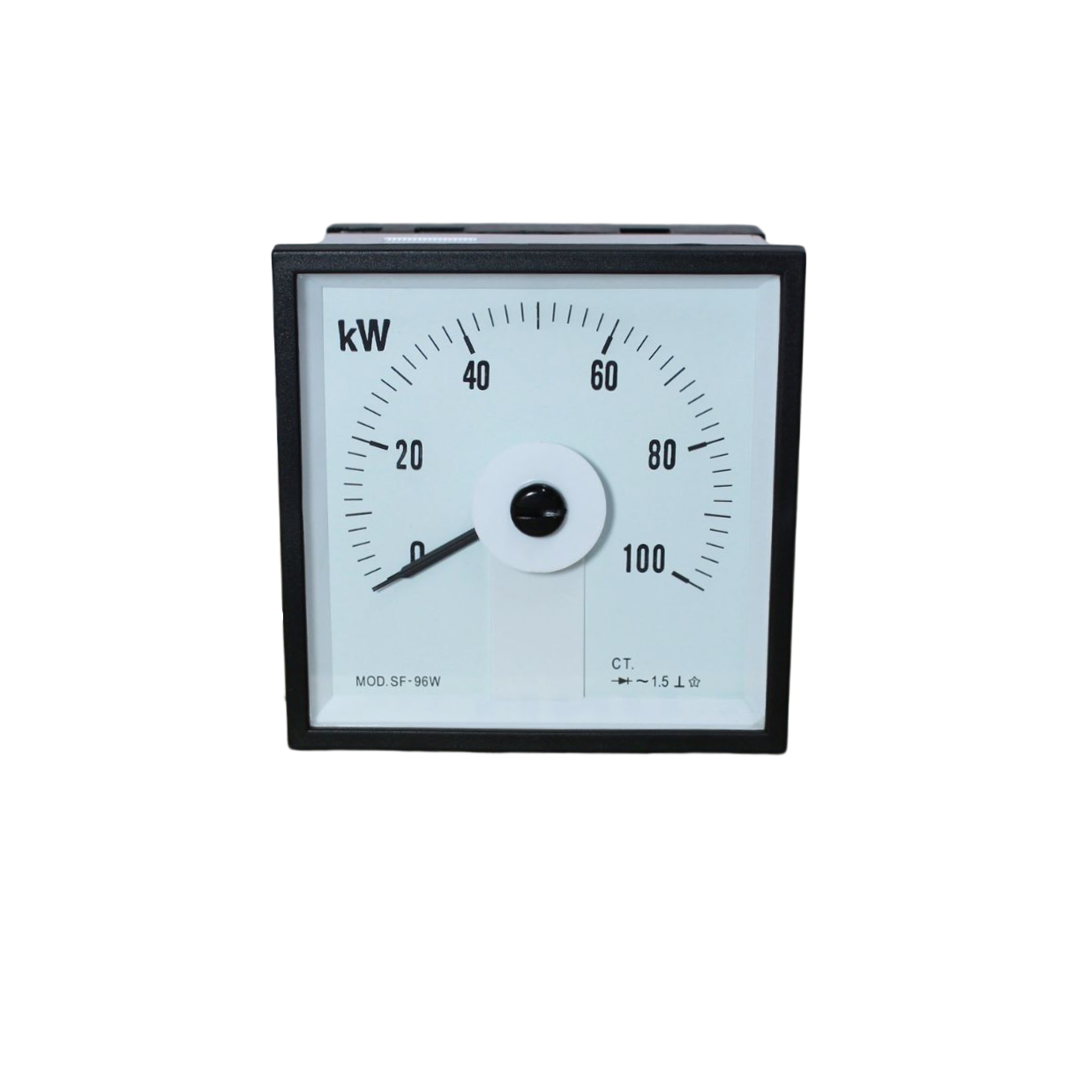

Wattmeter (KW)
WMKW-96 96X96 As required 1P ±1% / ±1.5%
WMKW-96 96X96 As required 3P3W ±1% / ±1.5%
WMKW-96 96X96 As required 3P4W ±1% / ±1.5%
WMKW-72 72X72 As required 1P ±1% / ±1.5%
WMKW-72 72X72 As required 3P3W ±1% / ±1.5%
WMKW-72 72X72 As required 3P4W ±1% / ±1.5%
Power factor meter(COSØ)
WMCOS-96 96X96 0.5CAP-1-0.5IND 1P ±1.5%
WMCOS-96 96X96 0.5CAP-1-0.5IND 3P ±1.5%
WMCOS-72 72X72 0.5CAP-1-0.5IND 1P ±1.5%
WMCOS-72 72X72 0.5CAP-1-0.5IND 3P ±1.5%
Frequency meter(Hz)
WMHZ-96 96X96 45-65HZ   ±1.5%
WMHZ-72 72X72 45-65HZ   ±1.5%
