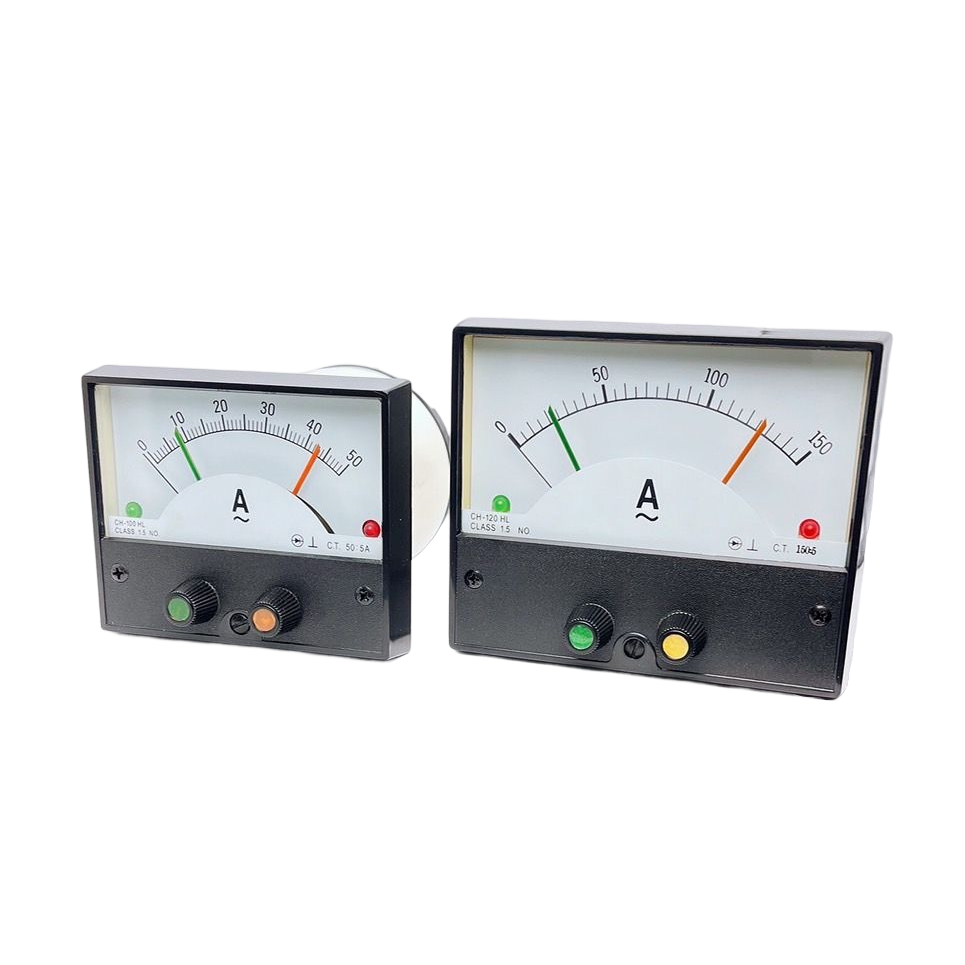

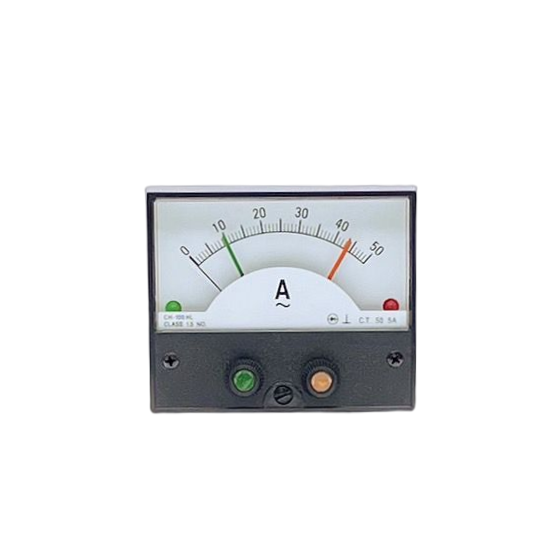

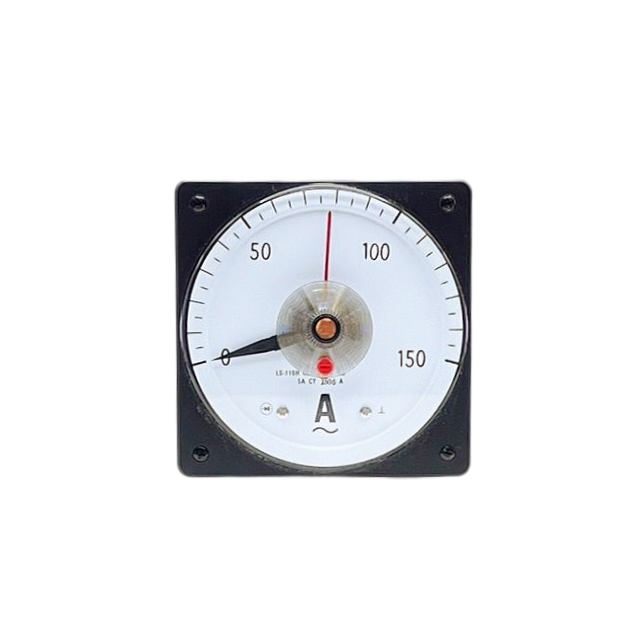

Meter Relay
- Specification
- This meter is applied to AC/DC field. It can be acted as an indicator for AC/DC current of AC/DC voltage. Owing to it has the setting mechanissm for the upper limit and lower limit. It also provides a ON/OFF switch for the system.
- Beyond the setting condition, the warning light will go on and automatically turn off the power. It plays as a limit controller.For instance, if the AC/DC load is over the high limit or low limit, it may damage to the operating machine andaffect to its normal function. Meanwhile, it may cause the machine breakdown. To ensure the operation in normal condition, we recommend install this controller to precisely monitor the operating condition.
Description
Standard Scale | V:0-110V,0-220V,0-330V,0-440V,0-500V | |||||||
A:0-50A/5A, 0-100A/5A, 0-150A/5A,0-200A/5A,0-600A/5A | ||||||||
Input | V: AC VOLTAGE | |||||||
A: CT Transformer | ||||||||
Output | AC 220V 5A | |||||||
Relay Contact AC 220V 5A | ||||||||
Setting | HL (high/low) / H (high) | |||||||
Control System | ON-OFF ON-OFF Action | |||||||
Temperature Range | 0-60℃ | |||||||
Power Consumption | 5W Approx. | |||||||
Consumptiom | 2.5VA or less | |||||||
Supply Voltage | ±15% Rated Voltage | |||||||
Net Weight | 720g 920g |
Item Code | Frame Size | Measuring Range | Class (%) |
---|---|---|---|
120S Series (90°) | |||
HL-120S | 120X100 | DC Current: 100uA,500uA,1mA,10mA-5A DC Voltage: 1V-300V AC Current: 1-300mA AC Voltage: 1-5A, 10-30A (CT) |
±1.5% / ±2.0% |
100S Series (90°) | |||
HL-100S | 100X83 | DC Current: 100uA,500uA,1mA,10mA-5A DC Voltage: 1V-300V AC Current: 1-300mA AC Voltage: 1-5A, 10-30A (CT) |
±1.5% / ±2.0% |
110S Series (240°/250°) | |||
HL-110S | 110X110 | DC Current: 1mA,10mA-5A DC Voltage: 1V-300V AC Current: 1-300mA AC Voltage: 1-5A, 10-30A (CT) |
±1.5% / ±2.0% |
