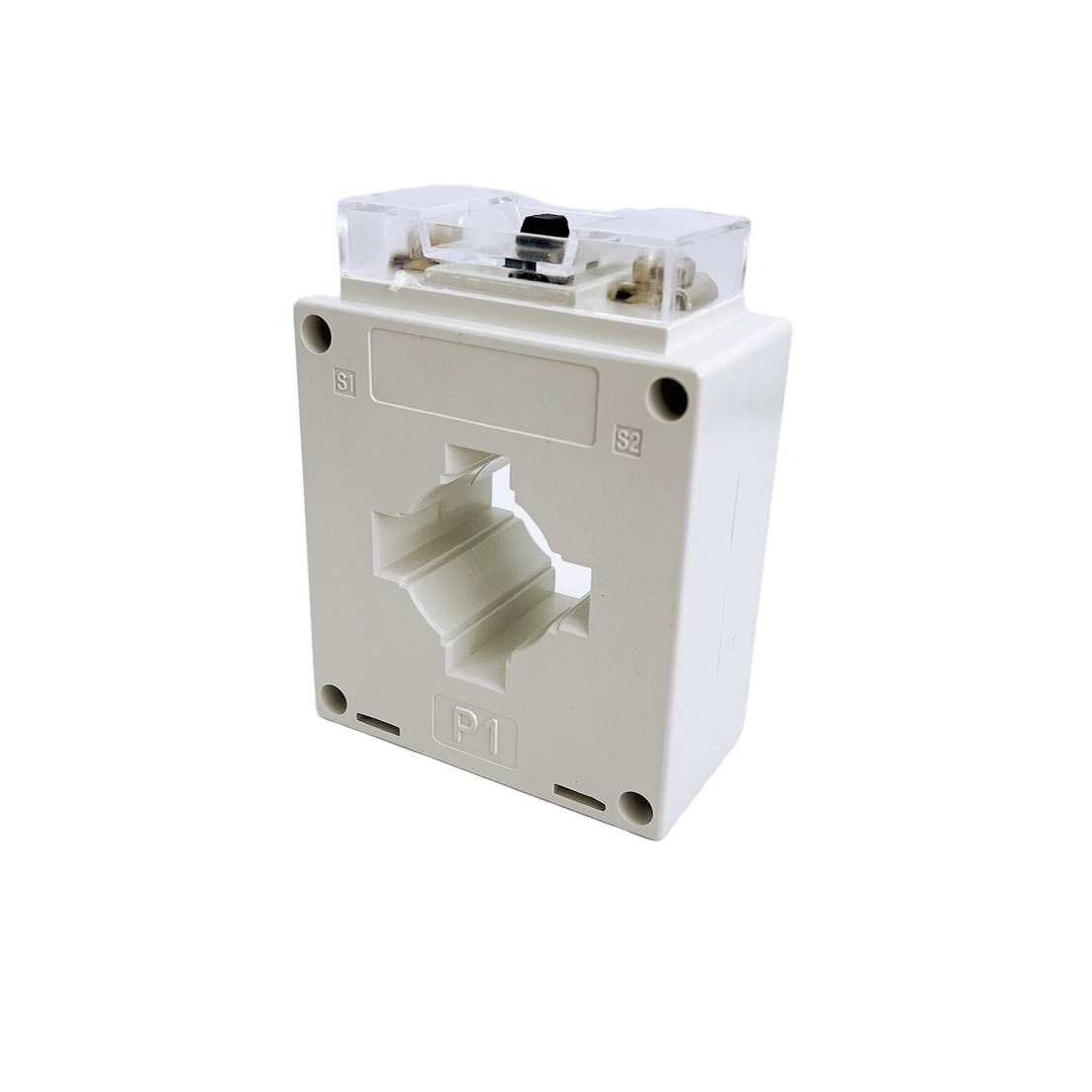

MFO Series
- Specification
- Primary current: 30-3000A
- Secondary current: 5A/1A
- Frequency: Linear 50/65 Hz
- Rated system voltage: 0.72 / 3kv
- Short time thermal current: 60In
- Dynamic current: 2.5/th
- Continous overload: 1.2/n
- Ambient temperature: -10℃ to 50℃
- Class: 0.5 1.0
- Custom specifications are available
| Item Code | Ratio(A) | Class0.5 (VA) | Class1.0 (VA) |
|---|---|---|---|
| MFO-30 |
100/5
|
- | 2.5 |
| MFO-30 | 150/5 | - | 3.75 |
| MFO-30 | 200/5 | 5 | 5 |
| MFO-30 | 250/5 | 5 | 7.5 |
| MFO-40 | 200/5 | 2.5 | 5 |
| MFO-40 | 250/5 | 5 | 5 |
| MFO-40 | 300/5 | 5 | 5 |
| MFO-40 | 400/5 | 5 | 10 |
| MFO-40 | 500/5 | 5 | 10 |
| MFO-60 | 400/5 | 5 | 2.5 |
| MFO-60 | 500/5 | 5 | 5 |
| MFO-60 | 600/5 | 5 | 10 |
| MFO-60 | 750/5 | 5 | 10 |
| MFO-60 | 800/5 | 7.5 | 10 |
| MFO-60 | 1000/5 | 10 | 10 |
| MFO-60 | 1200/5 | 10 | 15 |
| MFO-100 | 1200/5 | 10 | 15 |
| MFO-100 | 1250/5 | 10 | 15 |
| MFO-100 | 1500/5 | 10 | 15 |
| MFO-100 | 1600/5 | 10 | 15 |
| MFO-100 | 2000/5 | 10 | 15 |
| MFO-100 | 2500/5 | 10 | 15 |
| MFO-100 | 3000/5 | 10 | 15 |
