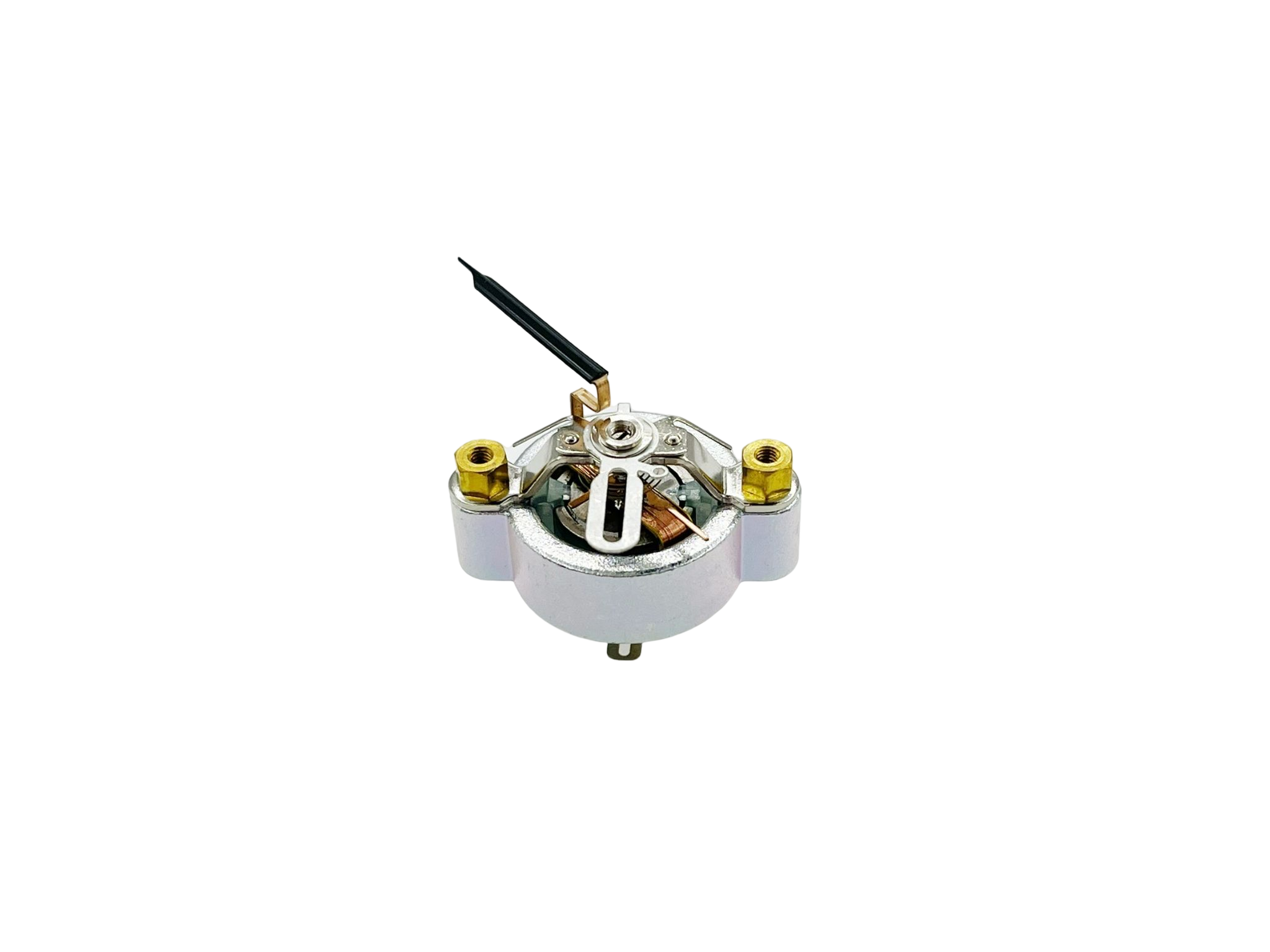

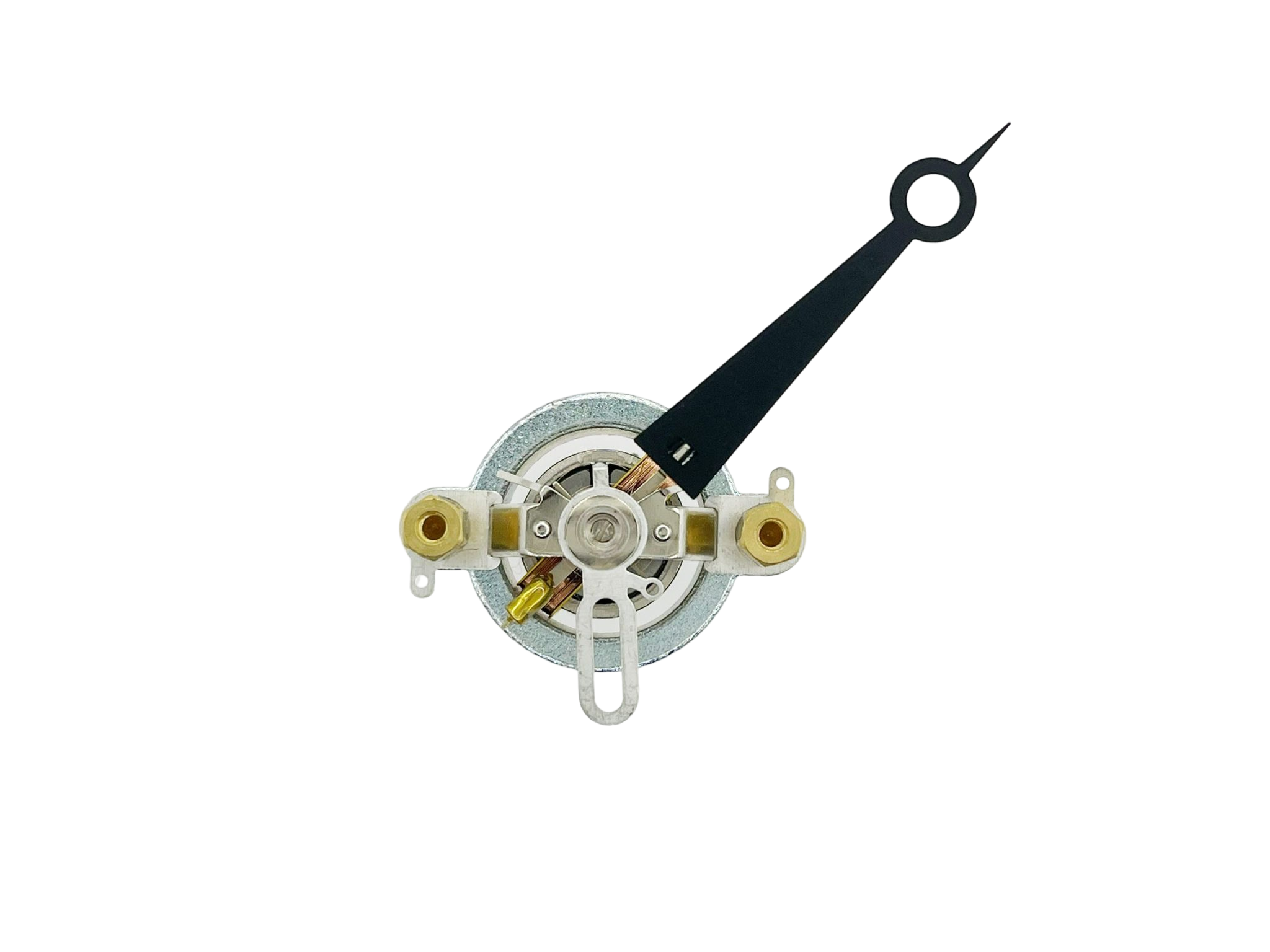

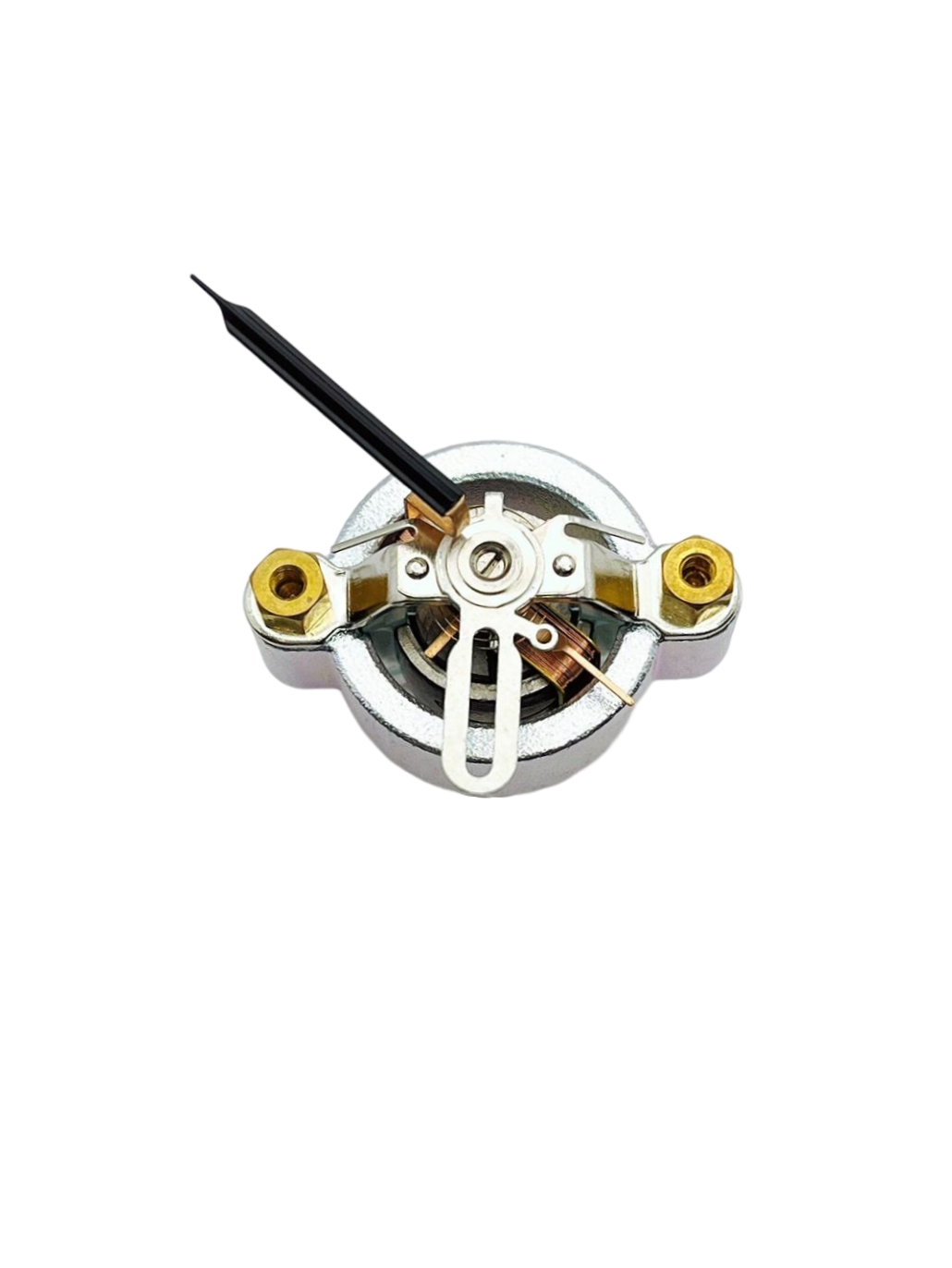

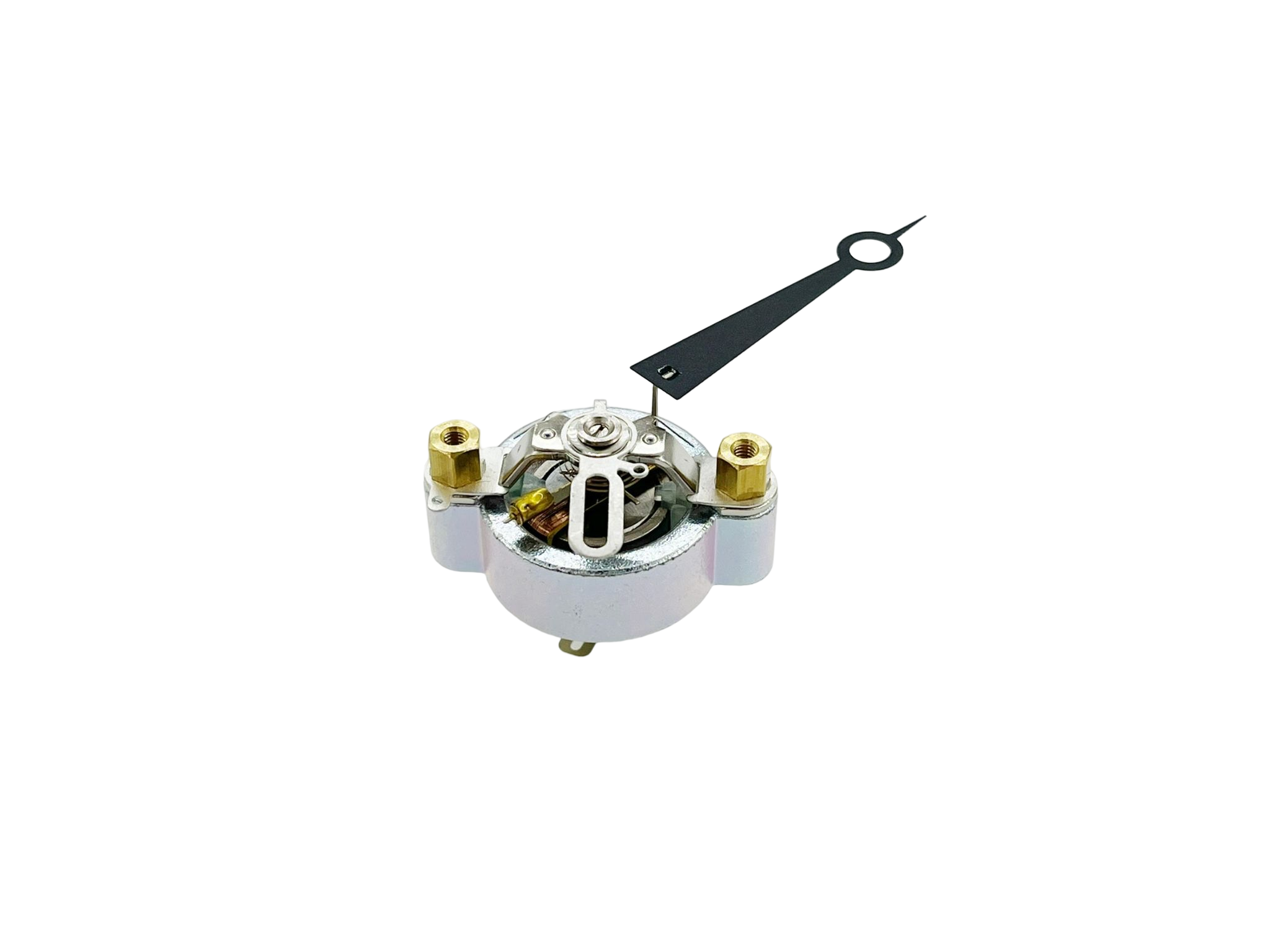

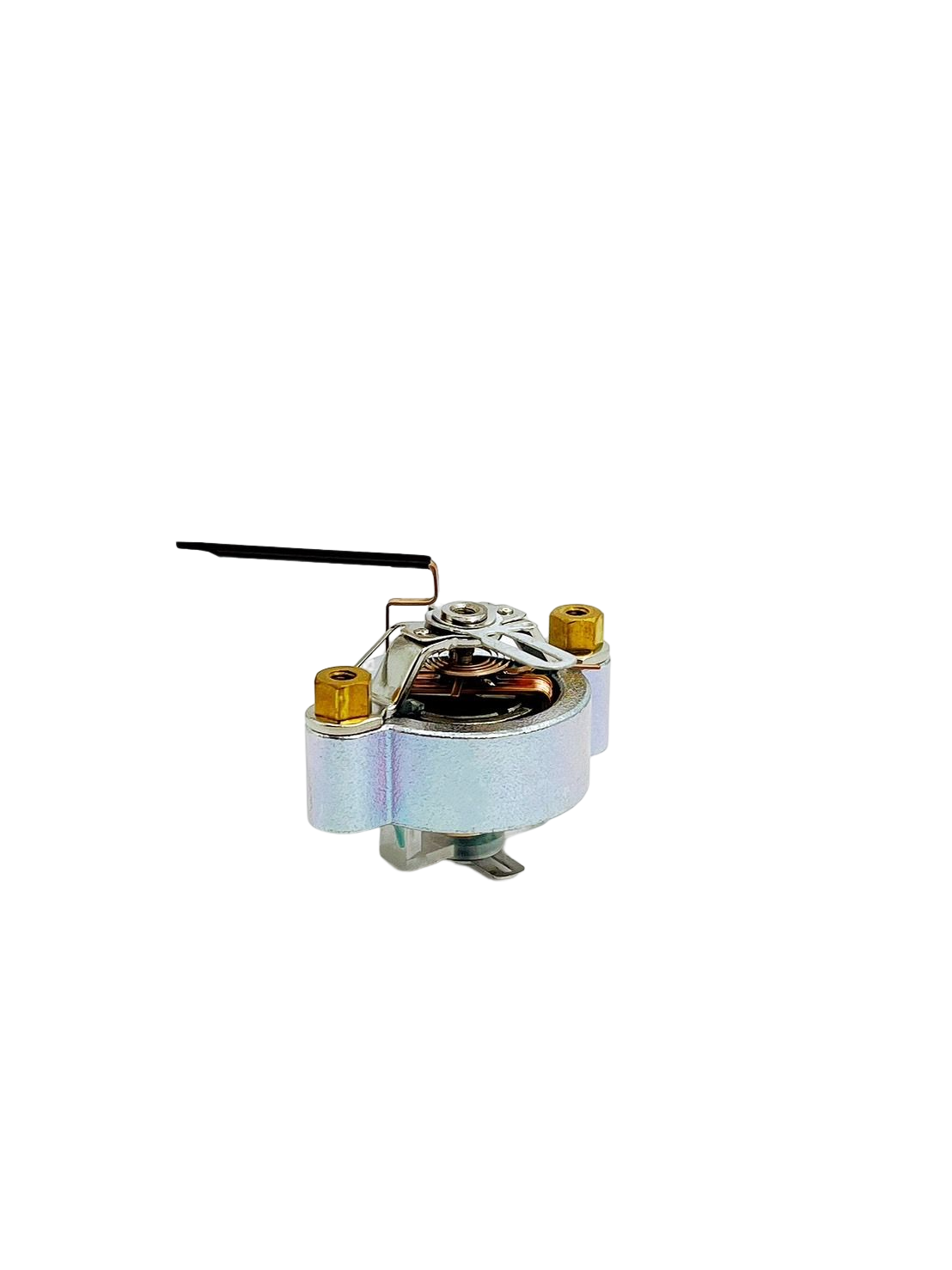

90 Degree Pivot and Jewel Movement
- Specification
- Accuracy: ±1% / ±1.5% / ±2.0%
- Pointer Shape: Tube/ Lance/ Knife-edge/ Customized
- Pointer Length: DIN 48/72/96/ Customized
- Moving angle: 90˚ / 100°
- Color: Black / Red / White / Customized
- Temperature Range: -25℃~+40℃
- Custom specifications and design are available
| Item Code | Frame Size | Measuring Range | Model | Class (%) |
|---|---|---|---|---|
| Direct Input DC Movement | ||||
| MM-50096 | DIN 96 / Customized | 50uA~5mA | ±1% / ±1.5% / ±2.0% | |
| MM-50072 | DIN 72 / Customized | 50uA~5mA | ±1% / ±1.5% / ±2.0% | |
| MM-50048 | DIN 48 / Customized | 50uA~5mA | ±1% / ±1.5% / ±2.0% |
